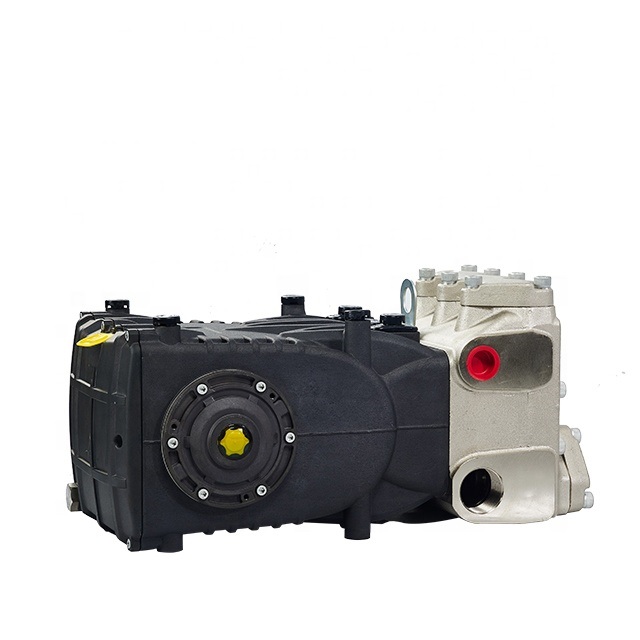

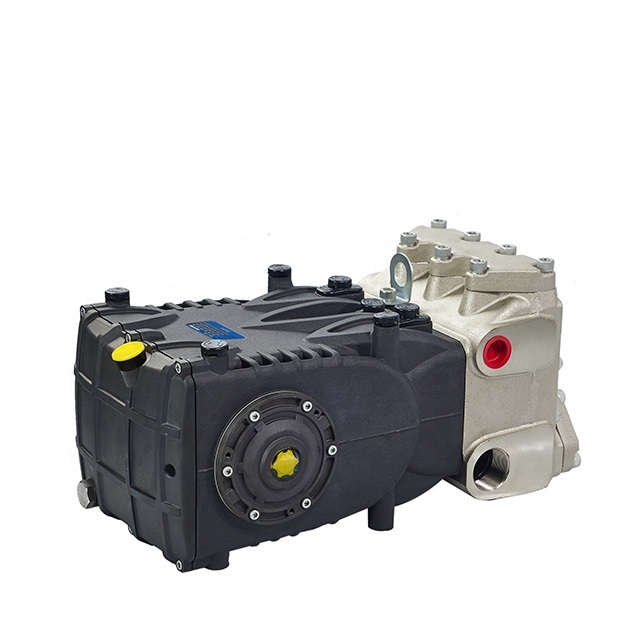

FLOWMONSTER Triplex Plunger Pump PF Series Forged Manifold Plunger Pump, Spherical Cast Iron Plunger Pump/Stainless Steel Material Avaliable Ceramic Plunger Pump High Flow Plunger Pump 92-239LPM High Pressure Plunger Pump 80-210Bar

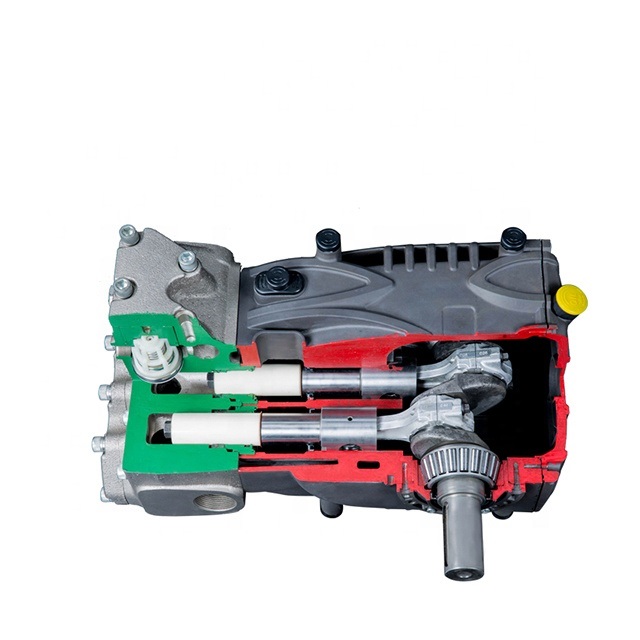

FEATURES

Forged Manifold, Spherical Cast Iron/Stainless Steel Material Avaliable
Die-cast Alloy Crankcase
Aluminum Connecting Rod, High Precision Finish
Ceramic Plunger, Precision Grinding
Double Pressure Packing, High-Low with integrated cooling
High Volumetric Checking Valves
Symmetrical Design,Easy Shaft Conversion of Left to Right

SPECIFICATION

Inlet Port: G 1/2"
Discharge Port: G 1"
Oil Capacity: 3.8 Ltr
Oil Code: SHELL 220
Incoming Water Pressure: 3 Bar
Water Temperature: 40 Celsius
Male Shaft: 40mm

APPLICATION

Sewer Jetting, Drain Cleaning, Street Cleaning, Paint Stripping, Car Washing, Metal Descaling, Hydrostatic Test, SWRO Plants, Mine Drilling in industries of Construction, Municipal Engineering, Petrochemical, Mining

Instructions for use

1. The pump should be installed on a flat base less than 15 degrees to ensure the best lubrication conditions

2. Confirm the inlet size of the high-pressure pump piping. The inlet pipe diameter should be 1.5-2 times the inlet size of the pump. The inlet and outlet of the pump must be equipped with hoses to avoid pressure and fluctuations generated by the system. It is best to install accumulators to avoid bending of pipes.

3. The water supply pressure should be 1.5-8kg/cm². The water supply temperature is below 70 degrees. The water supply system of the high-pressure pump must avoid the entry of air to ensure that the pump parts are not damaged.

Direction of rotation: The direction of rotation of the high-pressure pump is the direction in which the top of the pulley must face the pump head.

4. Before starting the motor-pump system, the following must be done

1). Check whether the crankcase lubricating oil is normal. If the oil level indicator of the gear box has only one engraved line, the oil level cannot be lower than the engraved line, but not higher than the engraved line 5mm. If the oil level indicator of the gear box has two Each line, the oil level is between the two lines.

2) Confirm that the valves of all pipes have been opened, and the medium can flow into the inlet of the pump and exhaust the air inside the system.

3) The operation of the high-pressure pump is not allowed to exceed the specified pressure, flow and speed.

4) Before spraying, the high-pressure nozzle should confirm whether the spray direction is safe. If there are unsafe factors, they should be eliminated in time to ensure safe production.

5. In order to remove the water in the pump to facilitate the placement in the freezing point environment, the pump can run for no more than 10 seconds under the condition of no water inlet.

6. For the system where the overflow valve is installed, the overflow pipe must be a hose. The overflow pipe should not be connected to the water inlet of the pump, but should be connected to the water tank or sewer.

7. When used for water storage tank, the suction line should use a hose of less than 3 meters, and the water level should be set higher than the height of the pump. If the water supply pressure does not reach the required pressure, it is recommended to use a booster pump.

8. Clean water should be used for the water supply, and a filter should be used on the supply line to prevent the inhalation of foreign objects.

9. Before operating the high-pressure pump, loosen the pressure regulating valve, and then gradually increase the pressure as needed after operation.

10. Lubricating oil should use SAE20W-50 or the same level of lubricating oil.

11. Lubricating oil should be replaced after 50 hours of initial use, and every 500 hours thereafter.

12. The water inlet filter should be regularly checked and cleaned.

13. All moving parts of the plunger pump must not be in a dry state.

14. High-pressure pumps are not allowed to use acidic, alkaline or corrosive liquids.
