FLOWDRIFT Brushless Motor Gear Pump KGP-06W Series
FLOWDRIFTTM Brushless Pump motor drive stainless steel gear pump KGP-06W unit device with digital display DC 24V convert to AC 220V power supply adjustable flow dosing pump beverage dispensing pump

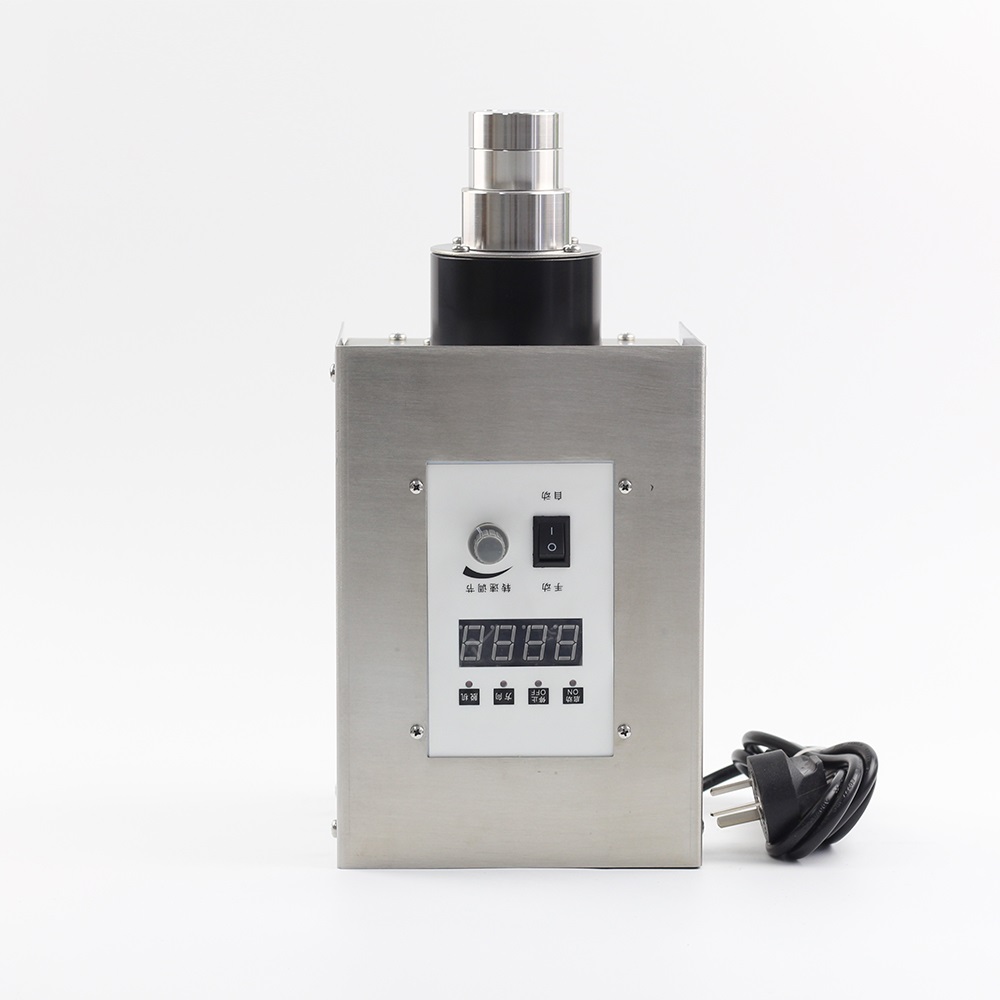

KGP-06W series gear pump assembly by Magnetic drive gear pumps KGP-06W2 or KGP-06W3 and digital display panel, control switches and switching power supply combination can be used directly for one-phase 220V. Digital display panel can display Motor Rev. through knob to adjust Motor Rev., thereby changing the transmission flow. having a small, easy to operate features. widely used in laboratory, medical, chemical, scientific research, food and other liquid delivery.
Technical parameters
|
Model |
Preset pressure |
Flow range |
Maximum Power |
System pressure |
Speed range |
|
KGP-06W204 |
5bar |
50 ~ 1000ml / min |
70W |
-0.8 to 20bar |
200~4000rpm |
|
KGP-06W209 |
100 ~ 2000ml / min |
||||
|
KGP-06W213 |
150 ~ 3000ml / min |
||||
|
KGP-06W312 |
200 ~ 4000ml / min |
200W |
|||
|
KGP-06W317 |
300 ~ 6000ml / min |
Note: 1. Ambient temperature: 0 ℃ ~ 50 ℃ Humidity:. ≤75%.
2, Motor Power: MG200 series 70W, MG300 series 200W.
3, Liquid viscosity range: 0.2 ~ 3000CPS.
4, Recommended Motor Rev .: ≤3500rpm.

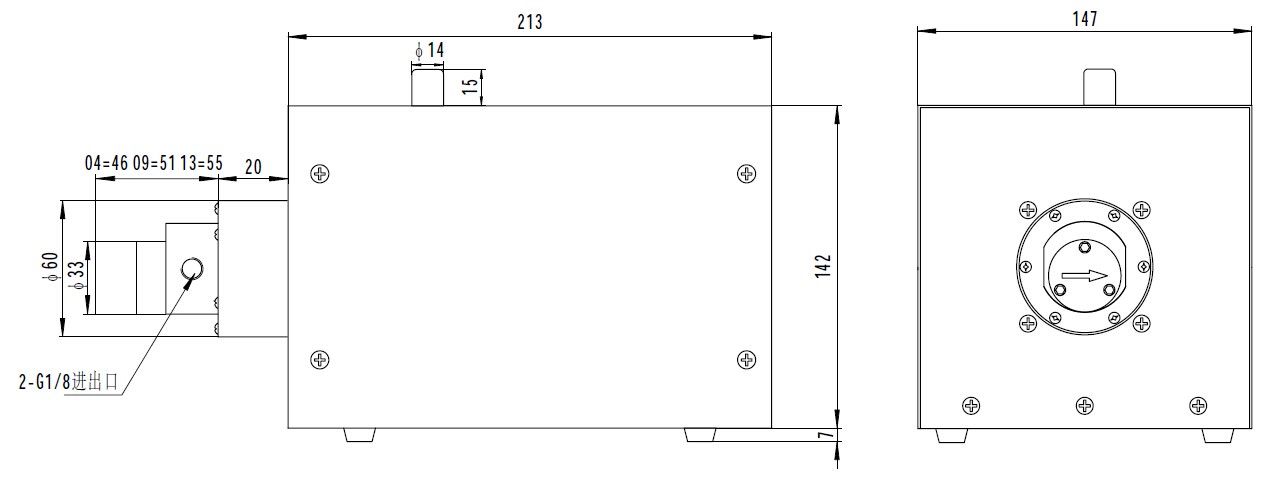

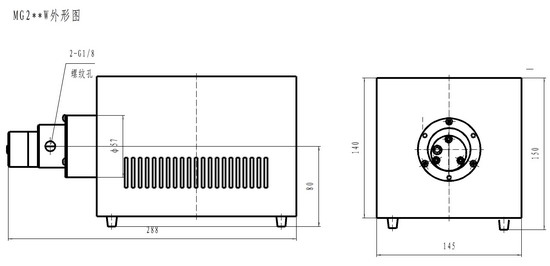

Outline dimension chart:
