FLOWEXPRESS Diaphragm Water Pump DP-61 Series
FLOWEXPRESS five chamber electric Diaphragm Pump Water Pump DP-61 Series DC Pump permanent magnet brush motor drive 18.9LPM/5GPM 60PSI for marine deck wash down RV boat yatch water treatment system
Product Label: SOVOFLO, FLOWEXPRESS, Pump, Water Pump, Diaphragm Pump, Membrane Pump, Mini Pump, Micro Pump, DC Pump, DC Water Pump, DC Diaphragm Pump, DC Membrane Pump, Mini Water Pump, Mini Diaphragm Pump, Mini Membrane Pump, Micro Water Pump, Micro Diaphragm Pump, Micro Membrane Pump, Electric Pump, Electric Water Pump, Electric Diaphragm Pump, Electric Membrane Pump, Brush Motor Pump, Water System Pump, Agriculture Pump, Spraying Pump, Electric Sprayer Pump, Self-priming Pump, Micro self-priming Pump, mini Self-priming Pump, Self-priming Water Pump, Self-priming Diaphragm Pump, RV Pump, Marine Pump
APPLICATIONS
- Diaphragm pump main for Marine fresh or salt water wash down installation.
- Other uses may include 12V DC pressurized water system in cabins.
- This pump may be used for general water transfer & light corrosivity chemical liquid transfer usage.
FEATURES
Built-in pressure switch automatically starts and stops pump instantaneously when discharge valve opens and closes.

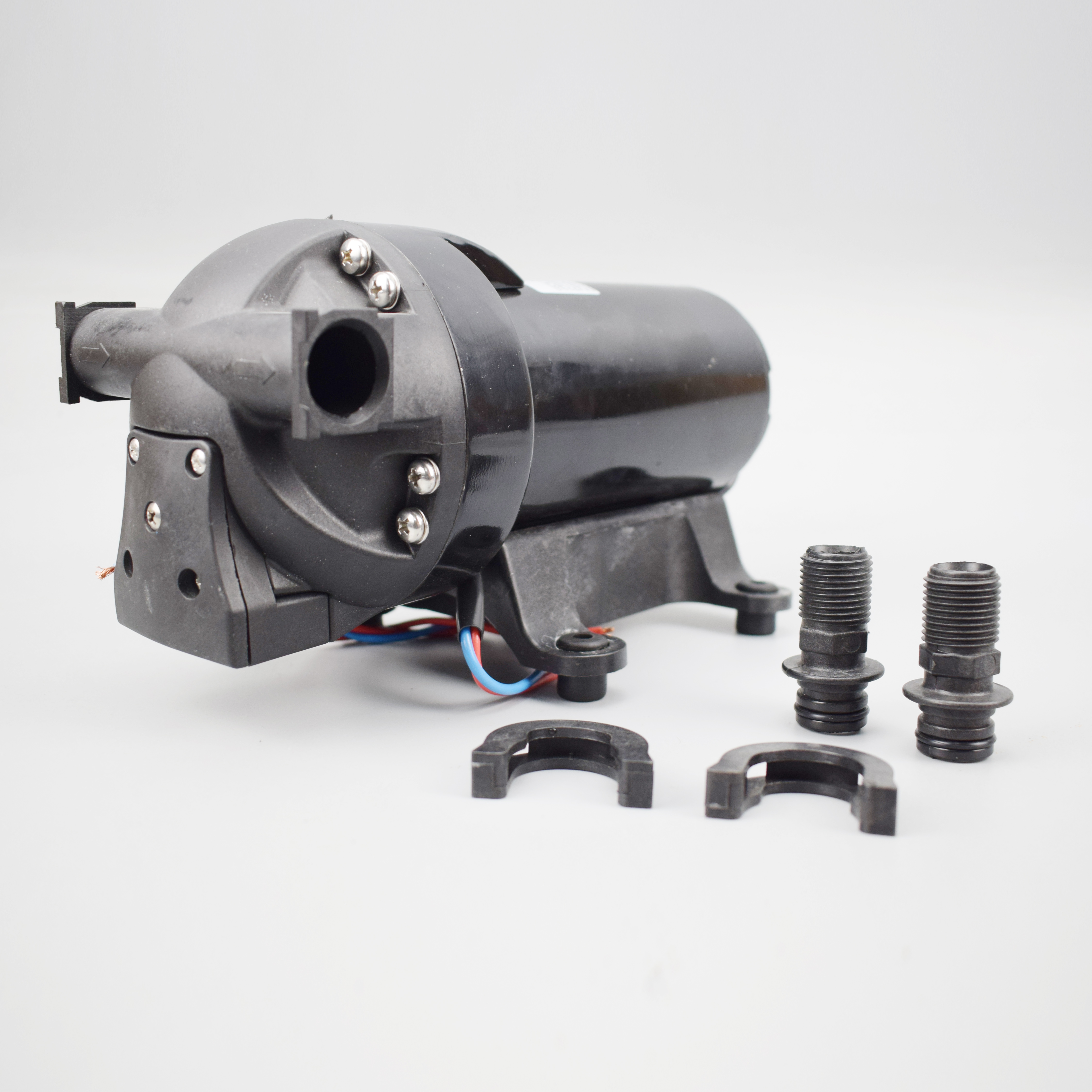

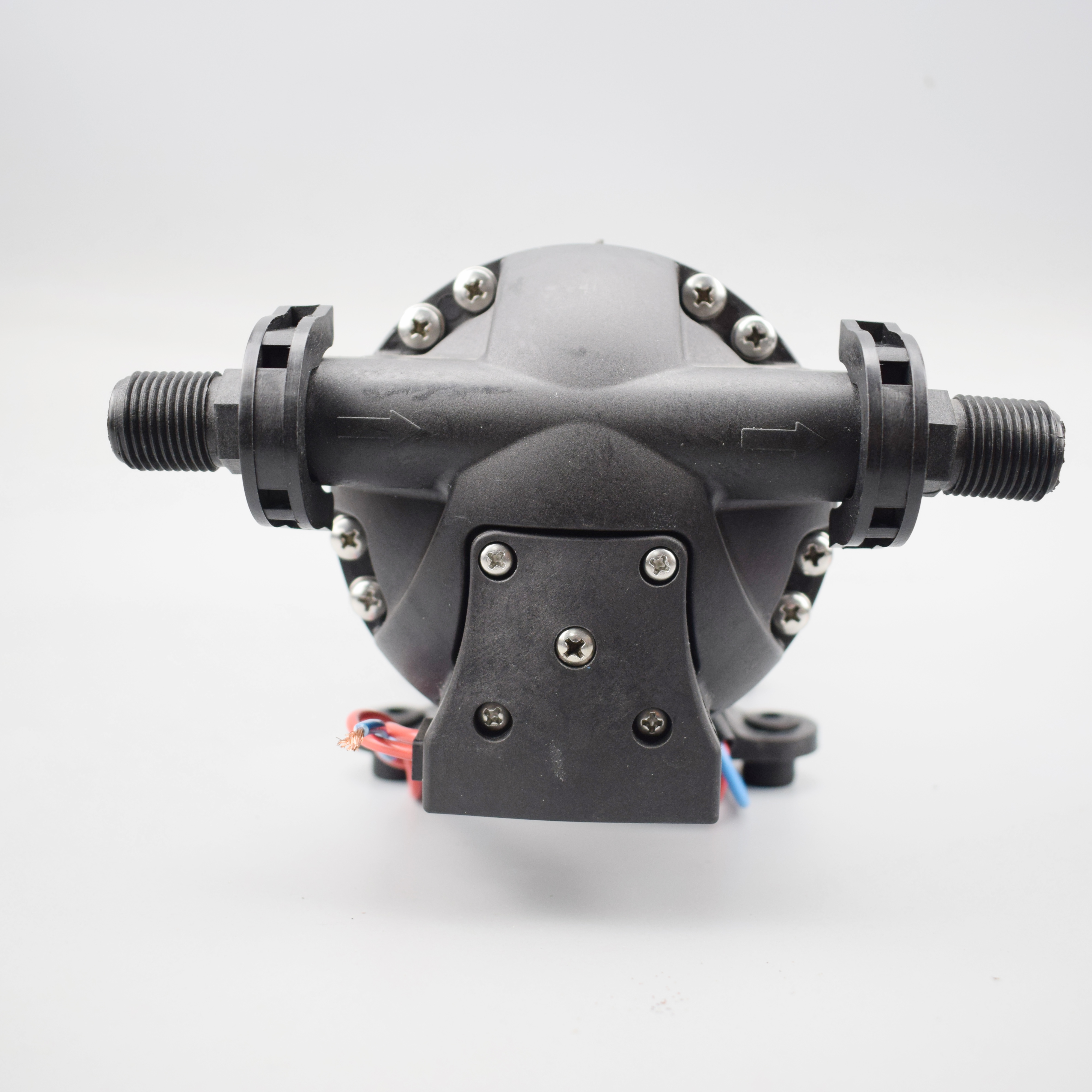

Snap-in Port Fittings.
Soft Noise Absorbing Mounts
Built-in Bypass: Less Pulsation
Corrosion Resistant Materials
Self-priming and Can run dry for extended periods of time without damage
Ball bearing drive throughout pump and motor assures longer pump life.
Excellent self-priming capability.
Powerful, permanent magnet motor with low current draw and long life brushes.
Meets ISO 8846 (Ignition protection)
SPECIFICATIONS
Model Numbers OEM/Aftermarket DP-61
Voltage 12/24 VDC
Dimensions Inches/Millimeters 9.25" x 5.0" x 5.5" [235x127x121mm]
Flow Rate GPM/LPM 5.0 GPM [18.9 LPM]
Amps (Max.) 12A
Shut-Off Pressure 60 PSI [4.1 BAR]
PRESSURE-FLOW CURVE

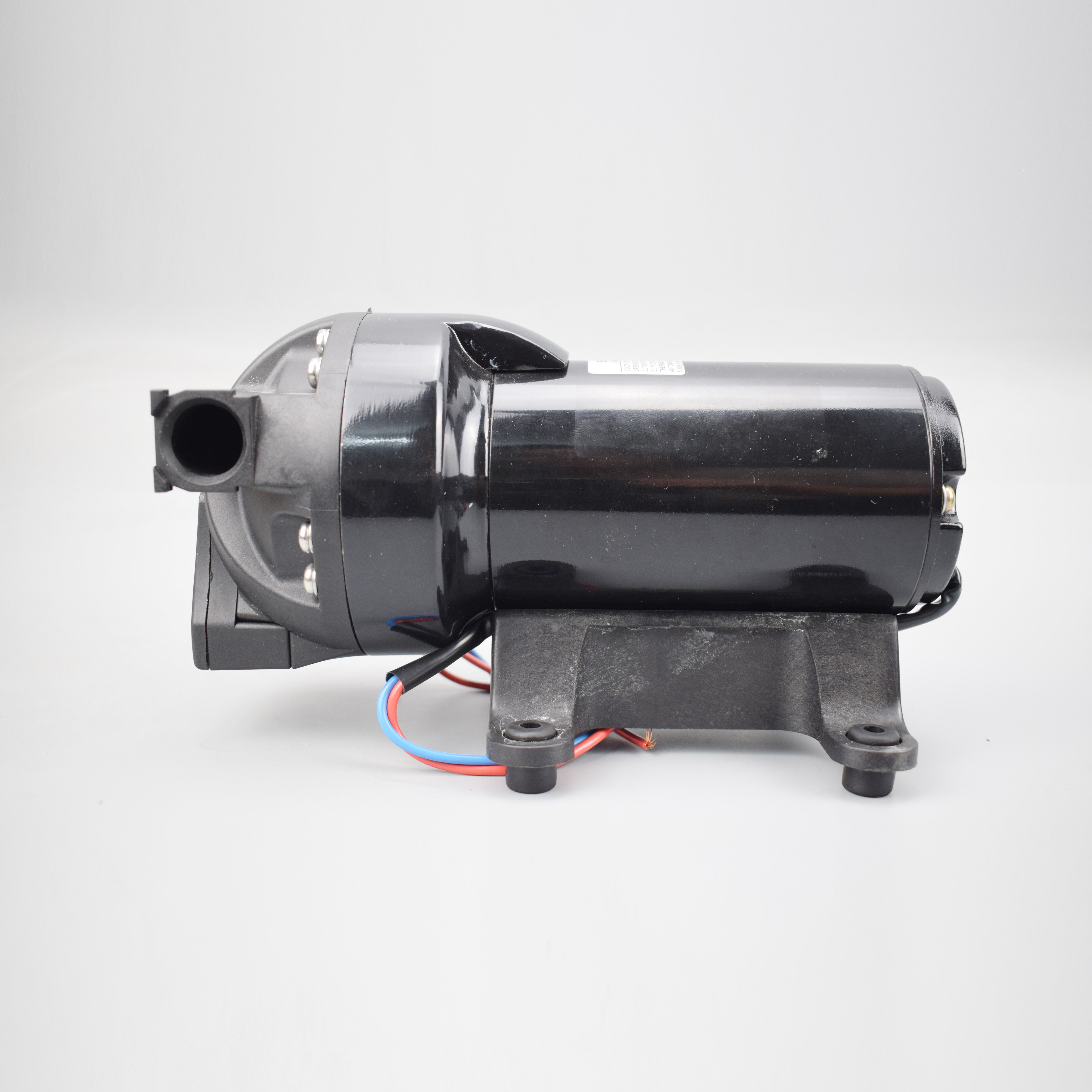

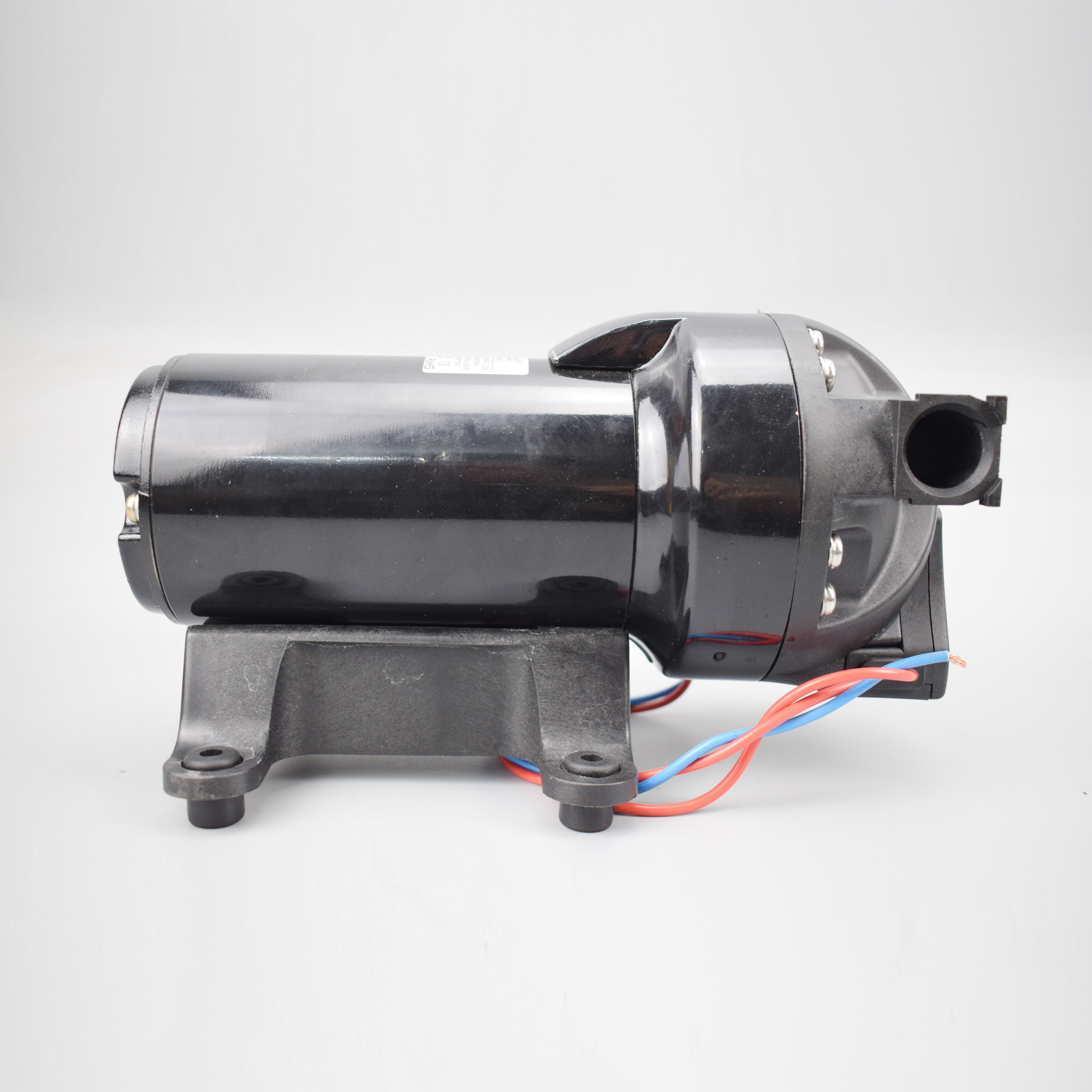

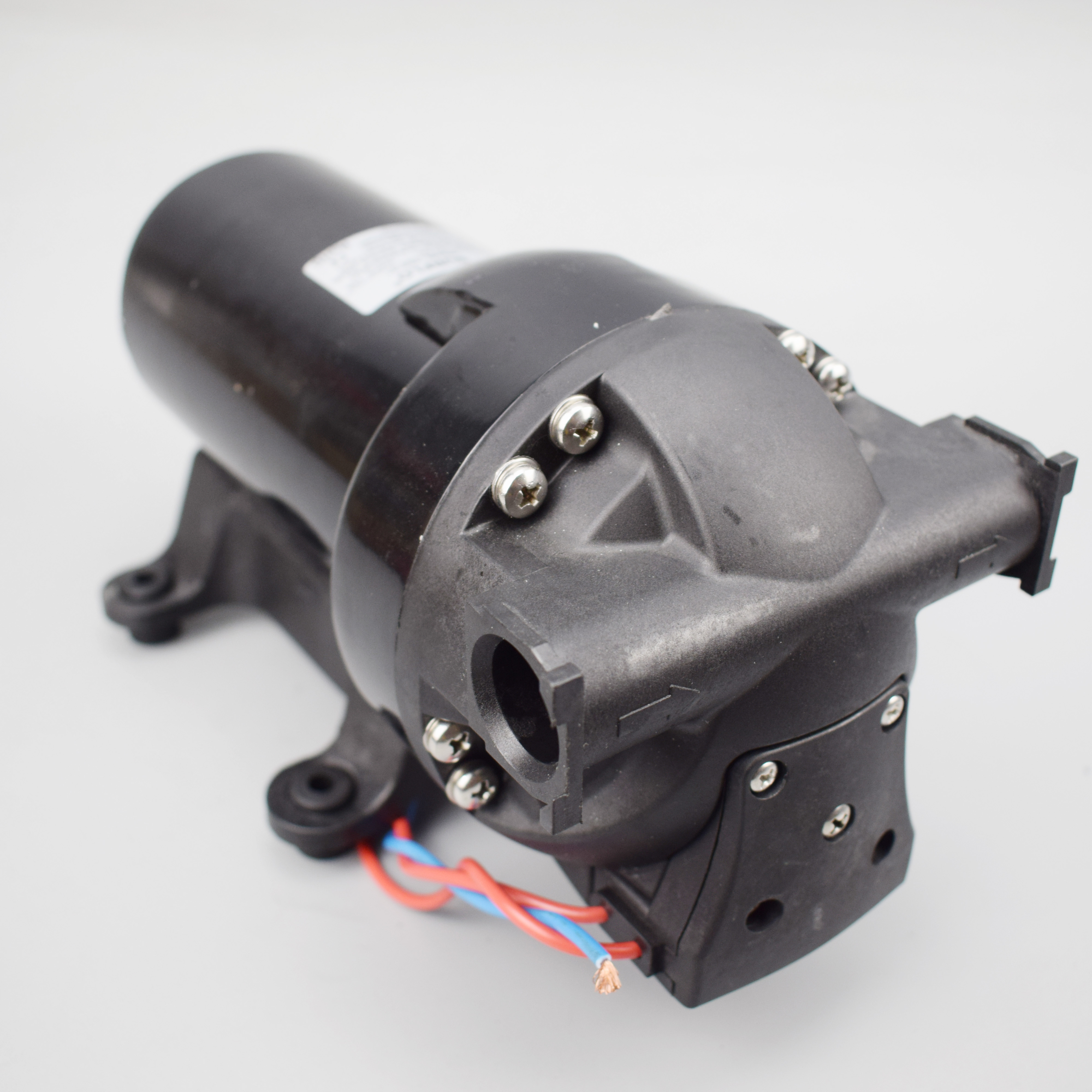

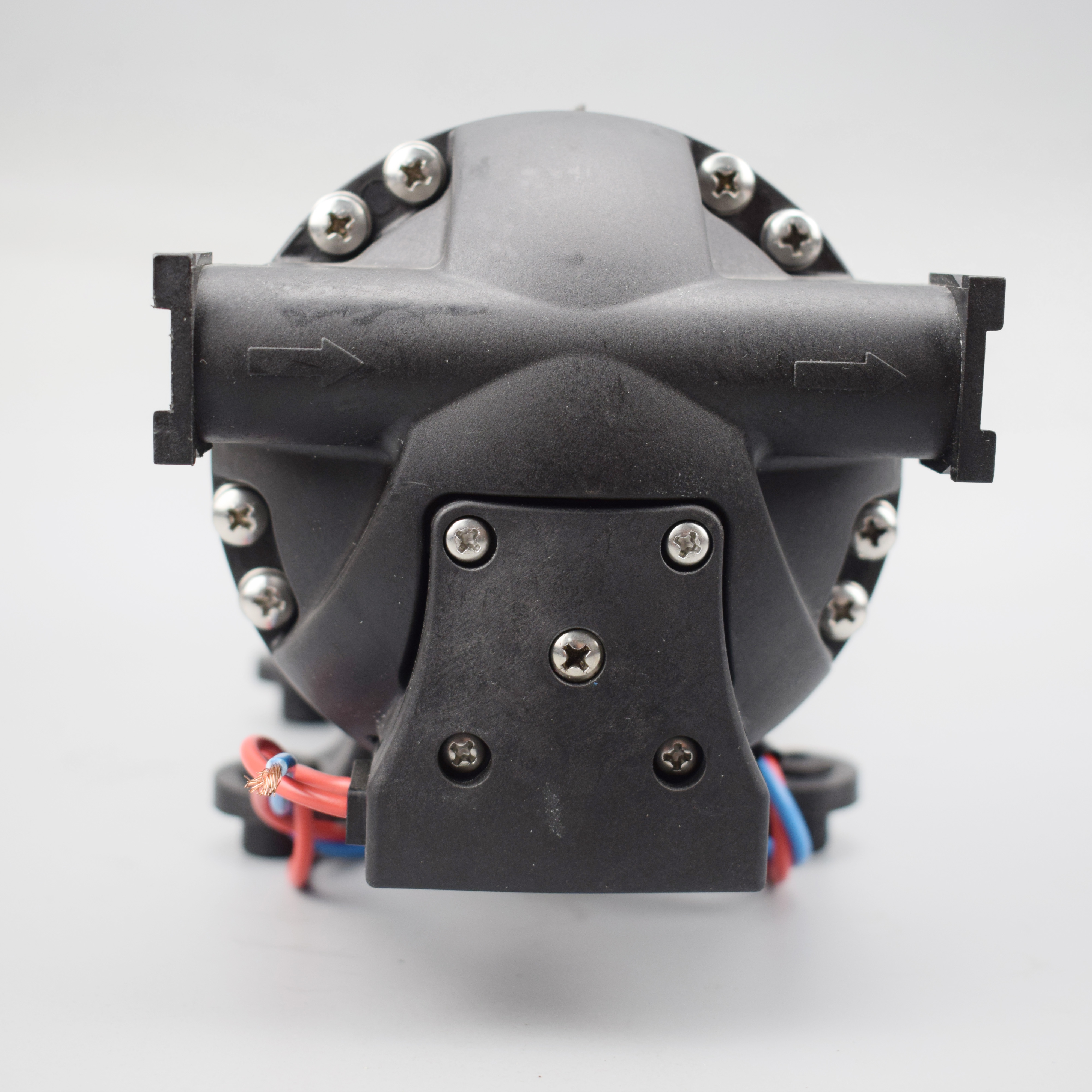

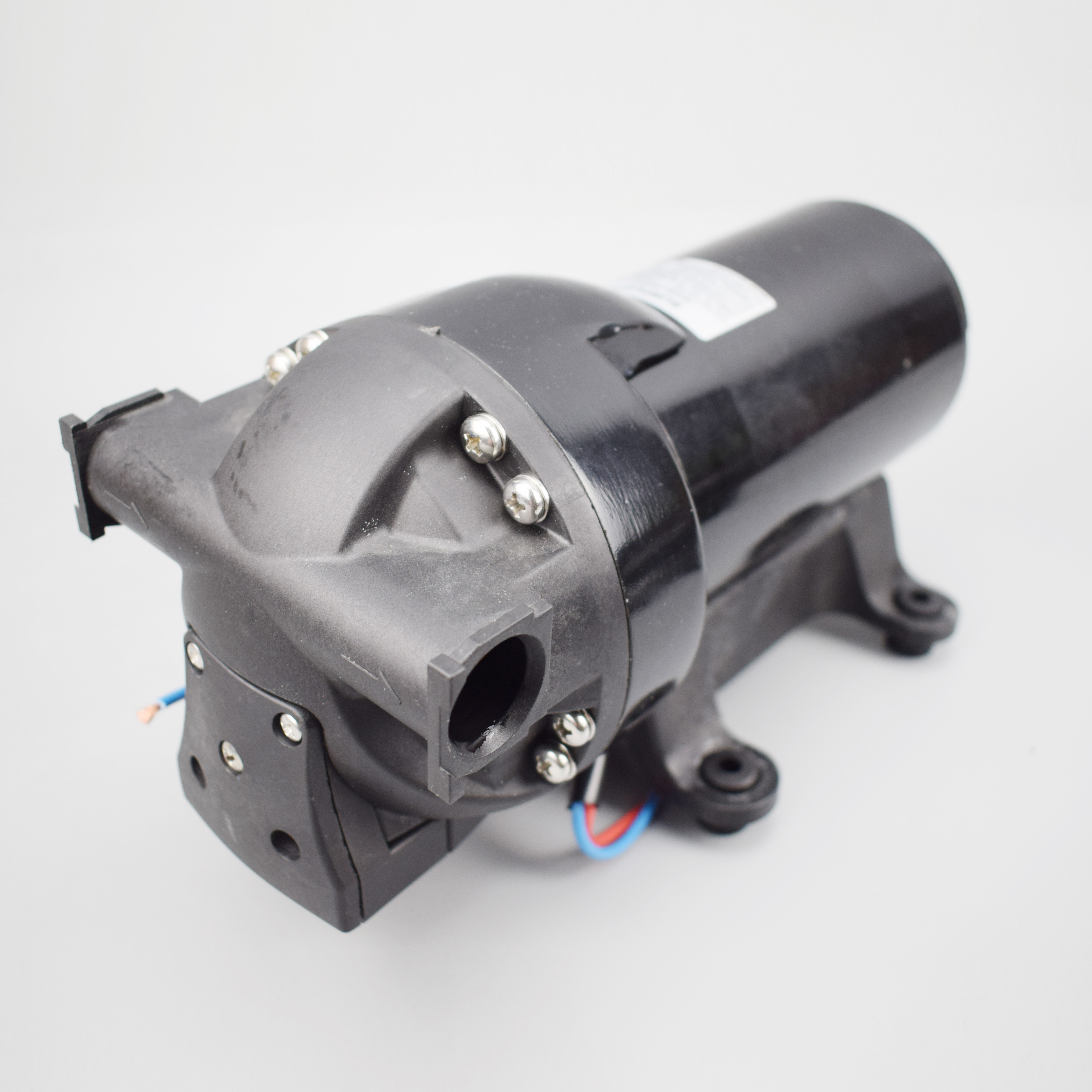

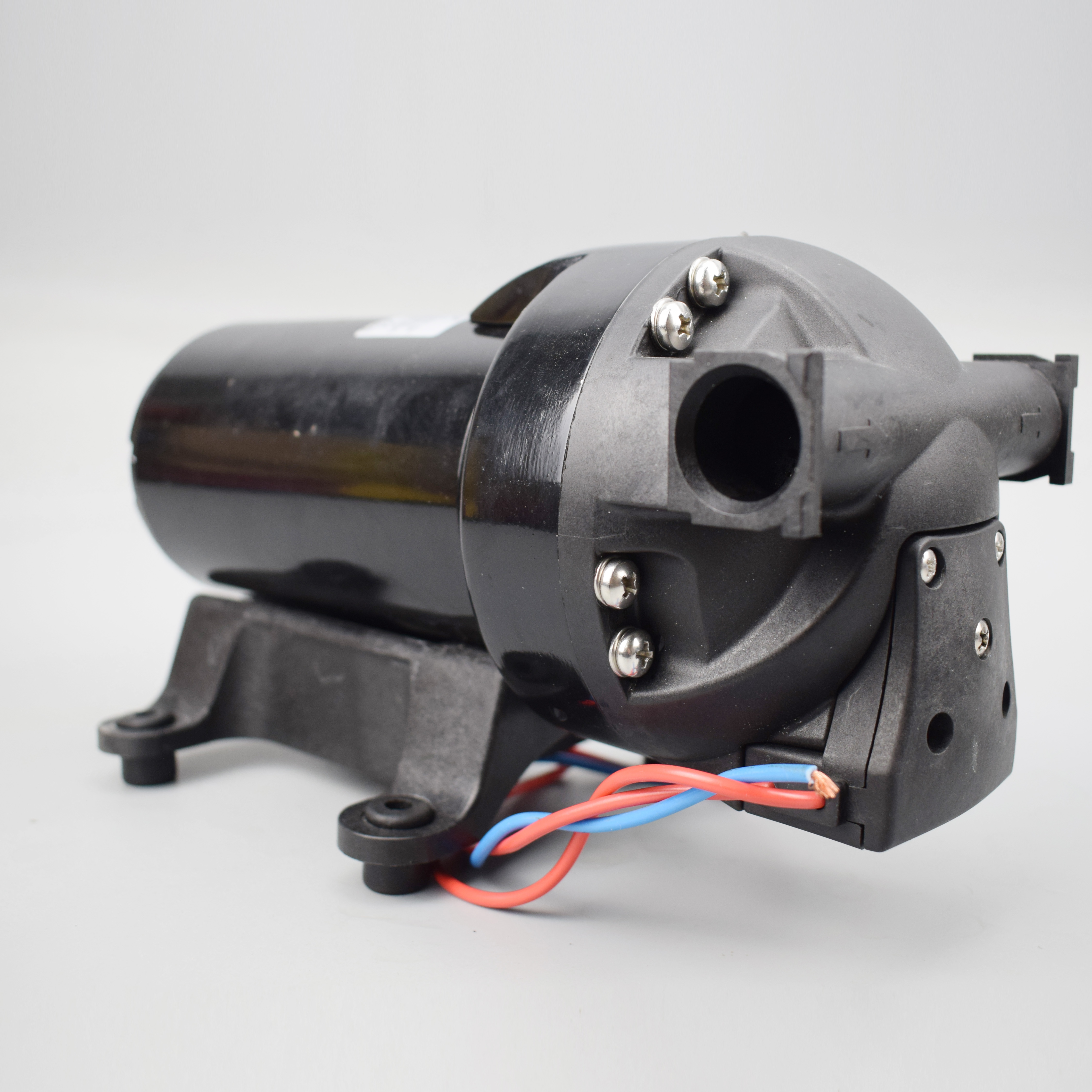

IMAGES
DIMENSIONS AND STRUCTURE
CHEMICAL RESISTANCE
| Chemical Resistance Code | Max Temperature Resistant Code |
|
A -- Excellent B -- Good C -- Ordinary × -- Unacceptable - -- Unusable |
1-20 ℃(68F) 2-40 ℃(104F) 3-60 ℃(140F) 4-80 ℃(176F) 5-100 ℃(212F) 6-120 ℃(248F) |
| CHEMICAL | MATERIAL | |||||||
| PP | PTFE | FKM | NBR | EPDM | 95 Ceramic | |||
| Sulfuric Acid | 0-10% | A4 | A6 | A6 | B2 | A4 | A5 | |
| 10-75% | A3 | A6 | A4 | X | A3 | A5 | ||
| 75-100 percent | B2 | A4 | A4 | - | B2 | A5 | ||
| Nitric Acid | 10% | A3 | A5 | A5 | X | A2 | A5 | |
| 30% | A2 | A6 | A6 | X | A2 | A5 | ||
| 50% | B2 | A3 | A1 | X | X | A5 | ||
| Hydrochloric Acid | 0-25% | A4 | A6 | A3 | B1 | C3 | A5 | |
| 25-40% | A4 | A6 | A2 | X | C2 | A5 | ||
| Hydrofluoric Acid | 10% | B2 | A6 | A3 | X | A3 | - | |
| 30% | C2 | A6 | A4 | - | B3 | - | ||
| 60% | X | A6 | A4 | - | C2 | - | ||
| Acetic Acid | 20% | A2 | A6 | B1 | B2 | A2 | A5 | |
| 80% | B1 | A6 | X | - | - | A5 | ||
| Sodium Hydroxide | 20% | A3 | A6 | B1 | B2 | A3 | - | |
| 50% | A3 | A6 | X | B1 | A4 | - | ||
| Bromine Water | C1 | A3 | A2 | - | X | A1 | ||
| Ethyl Alcohol | A2 | A3 | A3 | X | B3 | A3 | ||
| Acetone | A2 | A6 | X | - | B2 | A3 | ||
| Freon 12 | X | A6 | A1 | X | B1 | A4 | ||
| Aluminum Chloride | A4 | A6 | A5 | B4 | A4 | A4 | ||
| Ammonia Liquid | A1 | A6 | C1 | B4 | B3 | A3 | ||
| Aqua Regia | C2 | A5 | B2 | - | C2 | A4 | ||
| Formaldehyde | A4 | A6 | A4 | X | A4 | A4 | ||
| Gasoline | X | A6 | B3 | B3 | X | A4 | ||
| Kerosene | A1 | A6 | A1 | B1 | X | A4 | ||
| Methyl Alcohol | A3 | A6 | B2 | B4 | A3 | A5 | ||
| Toluene | C1 | A4 | B1 | - | X | A5 | ||
| Trichloroethylene | C1 | A6 | A1 | - | X | A4 | ||
| Xylene | X | A6 | B1 | - | X | A5 | ||
| Nitric Acid Anhydrous | C1 | A3 | A1 | - | X | A5 | ||
| Oleum | X | A6 | A4 | - | X | A5 | ||
| Potassium Hydroxide | A4 | A6 | B1 | C2 | A5 | - | ||
