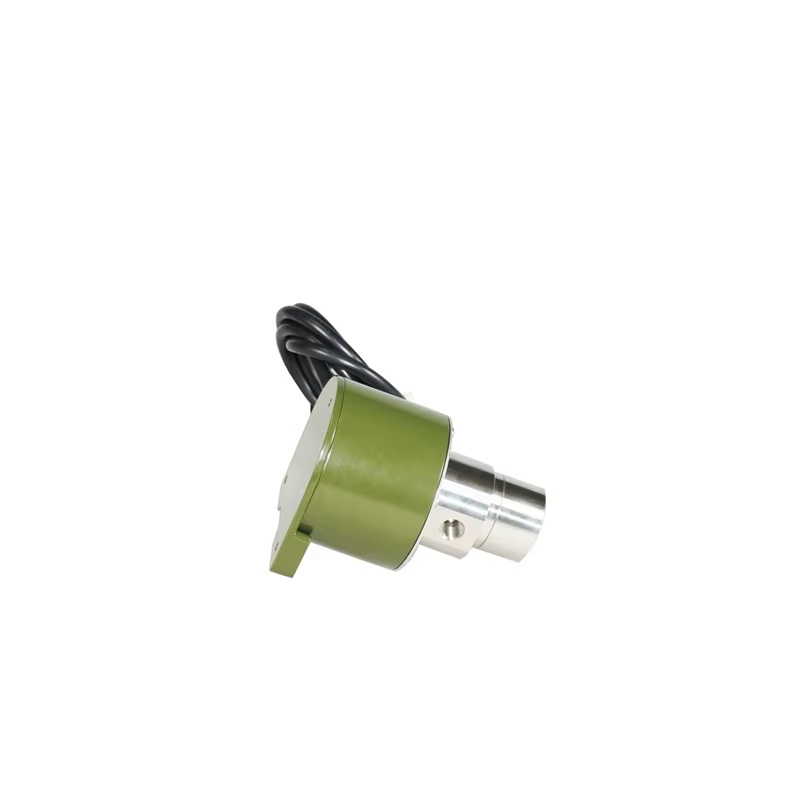

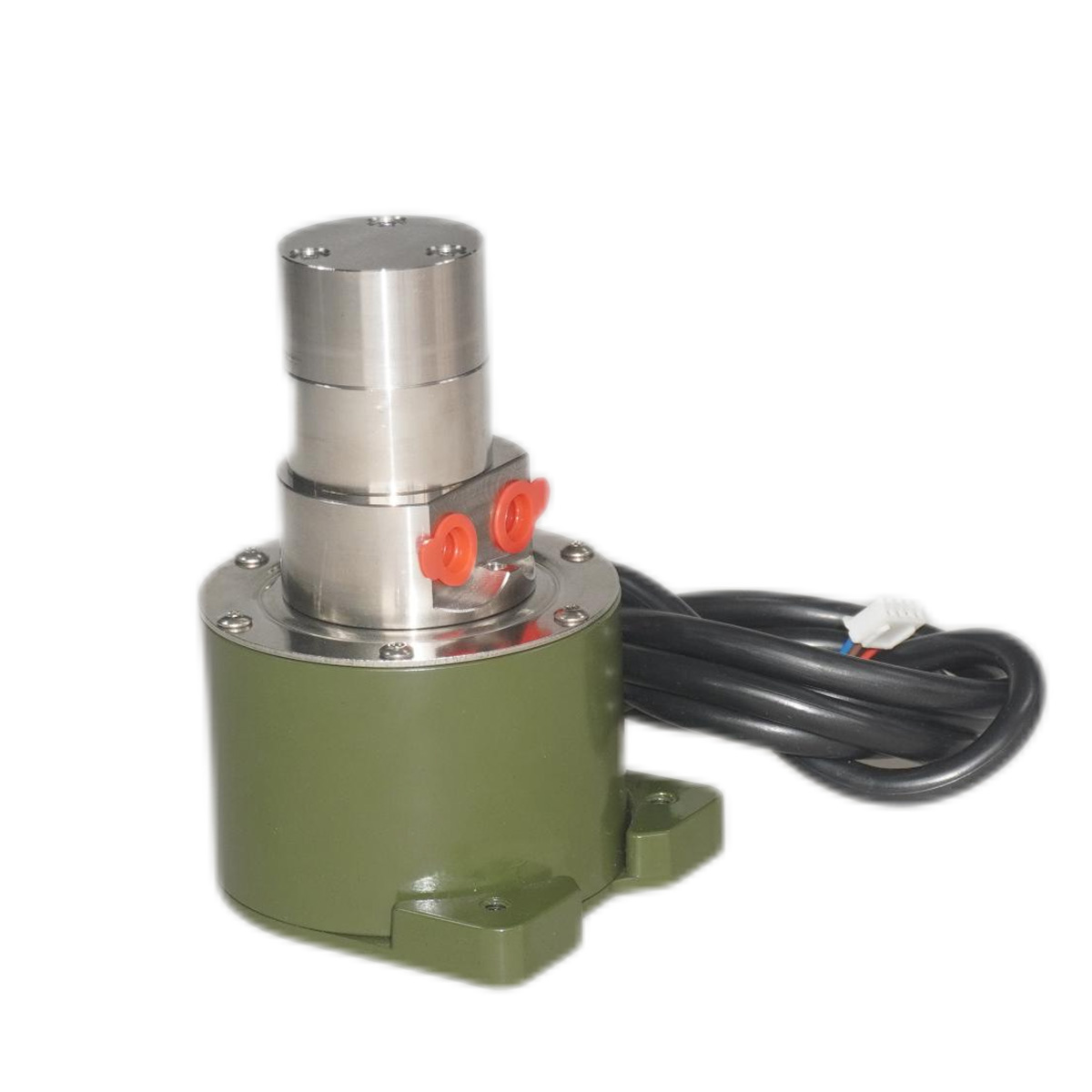

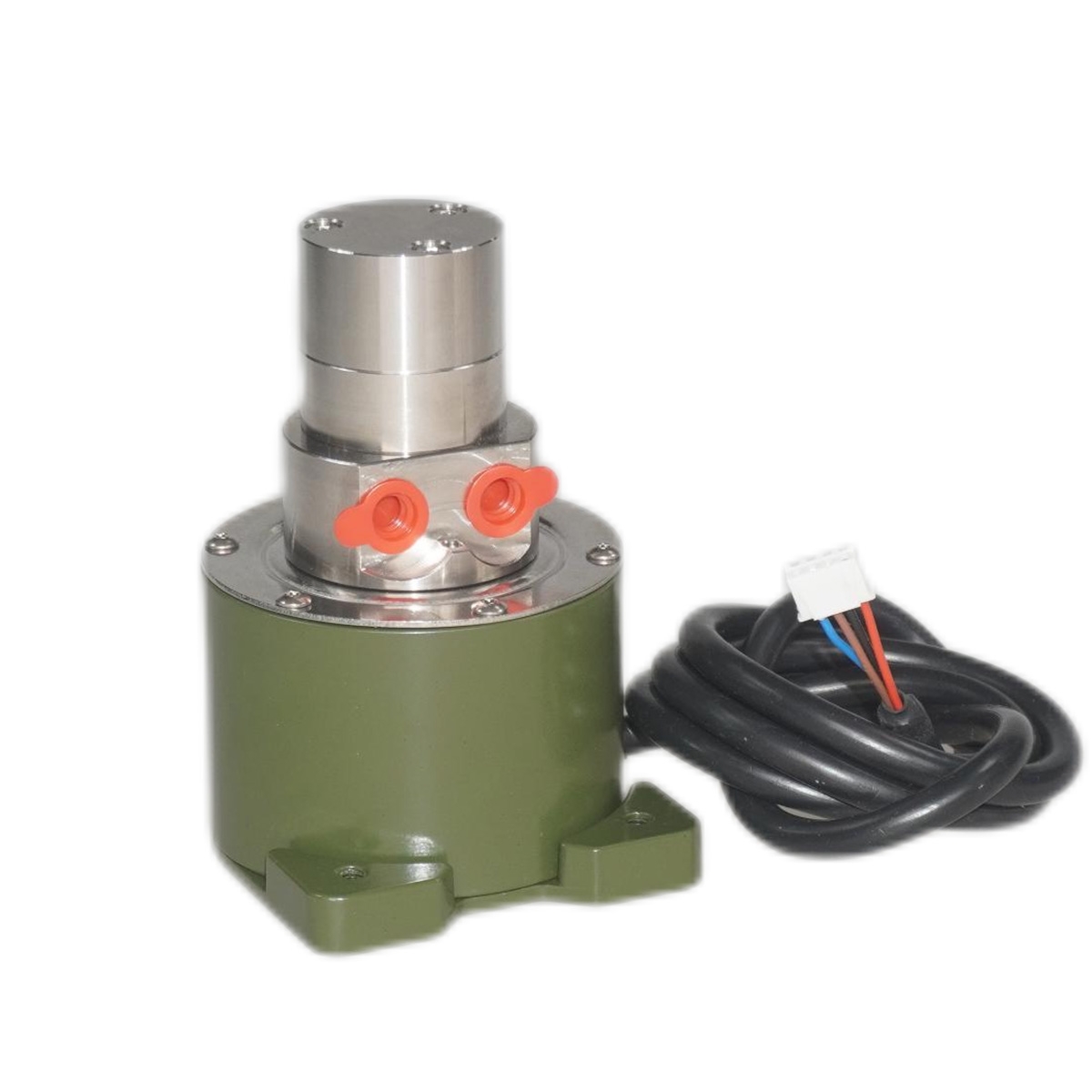

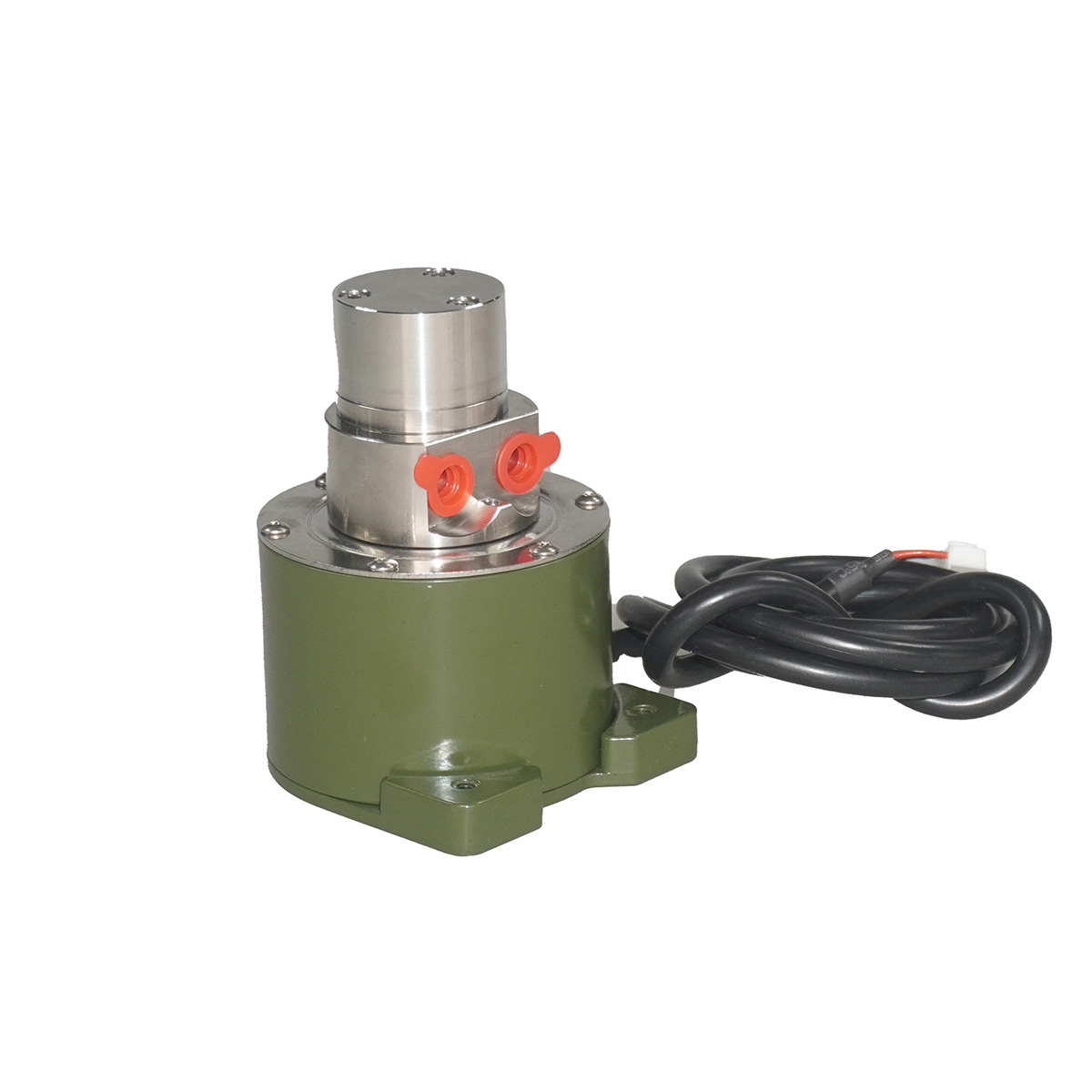

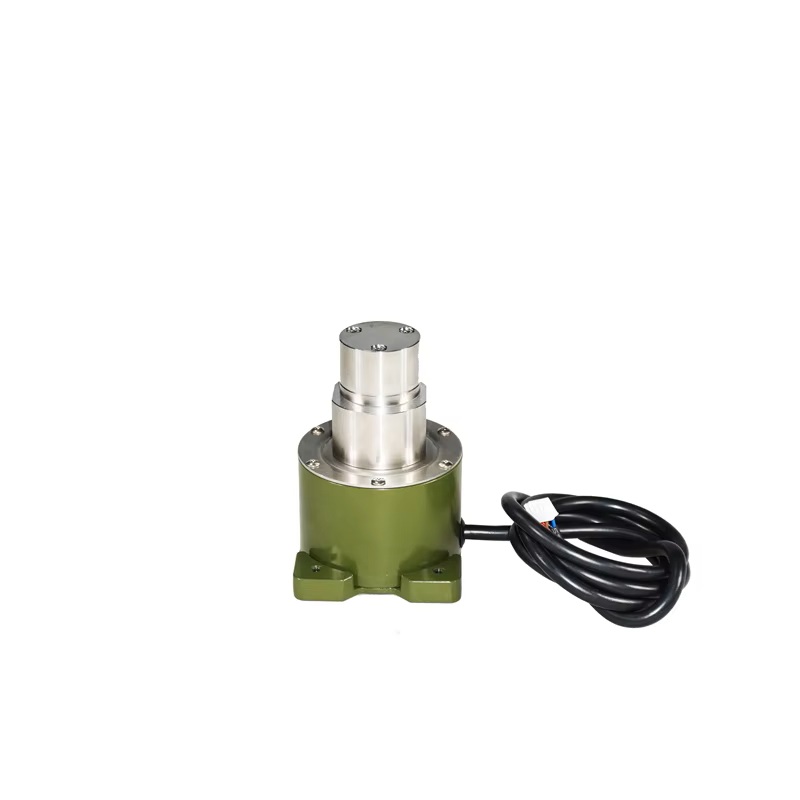

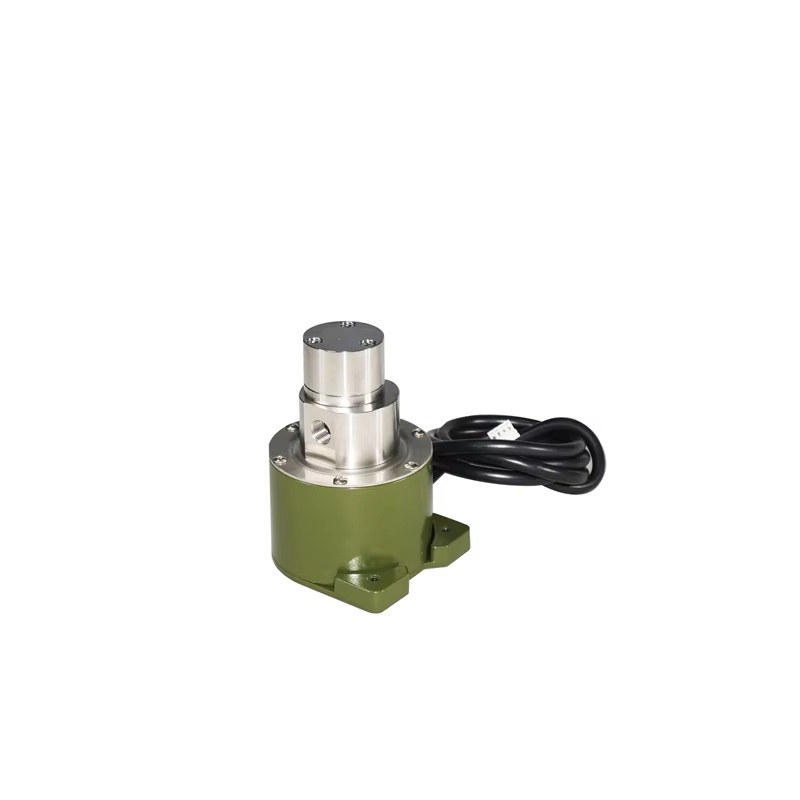

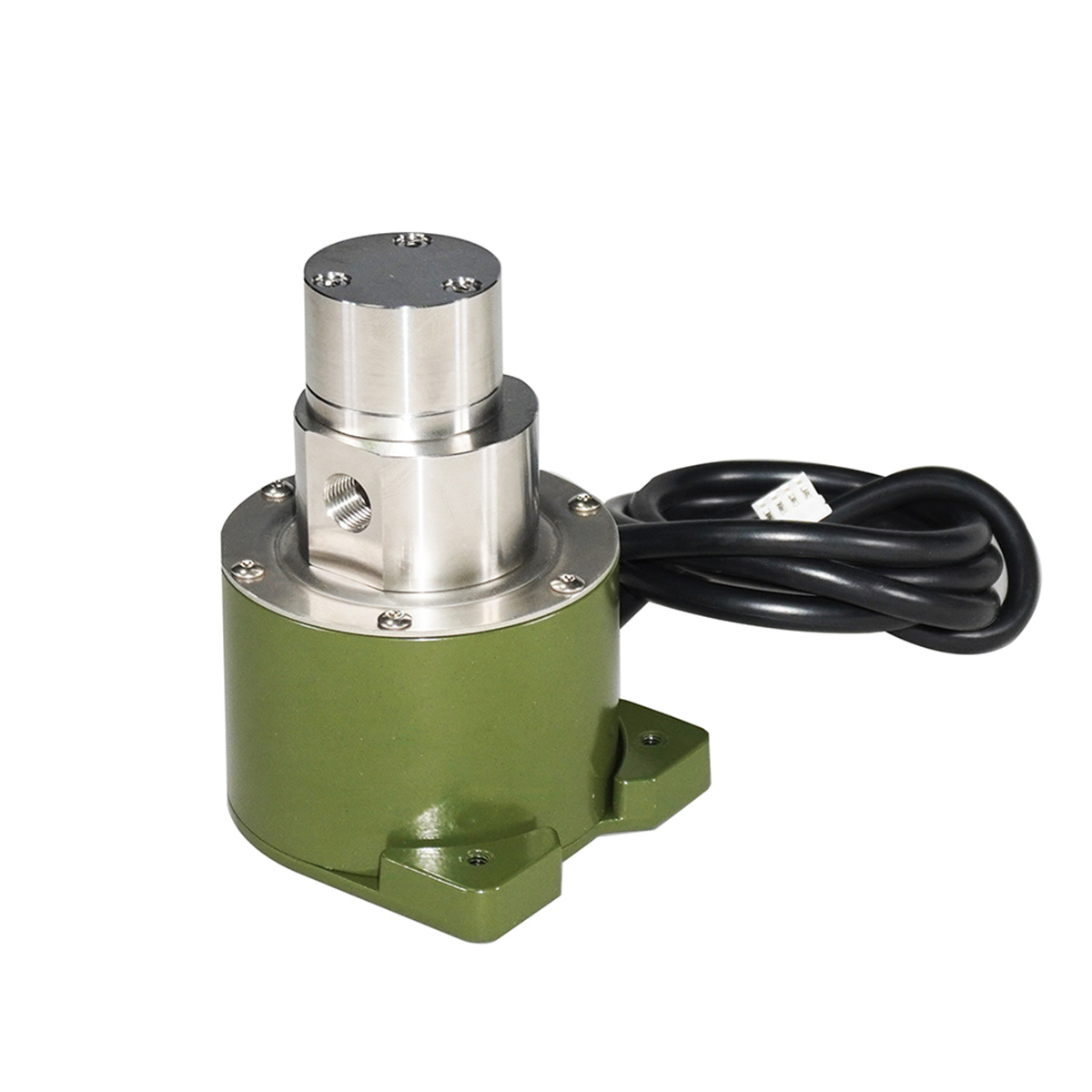

32 series Magnetic Gear Pump
32 series High Precision Stainless Steel Magnetic Drive Gear Pump 0.1/0.33/0.65/0.94/1.22mL/rev

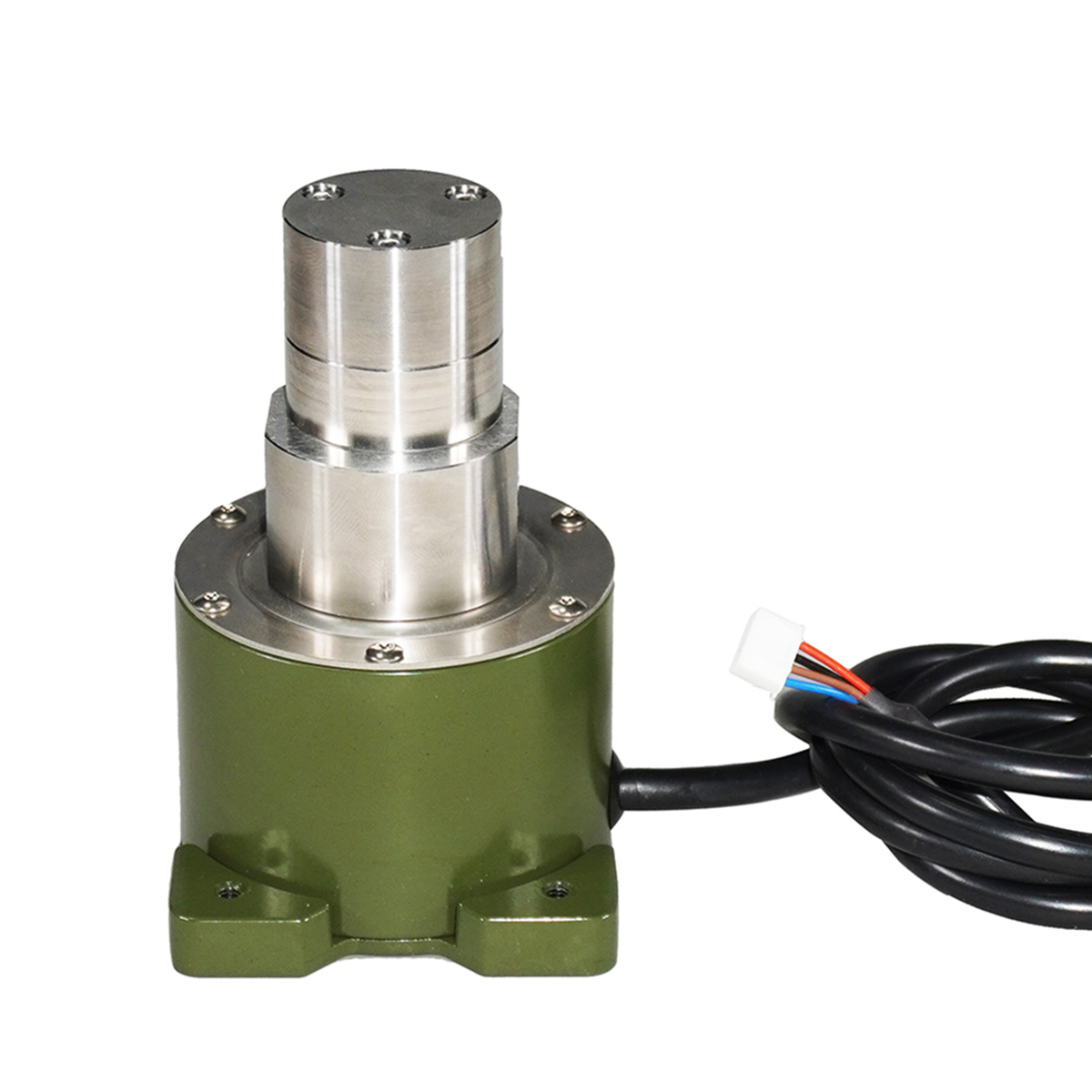

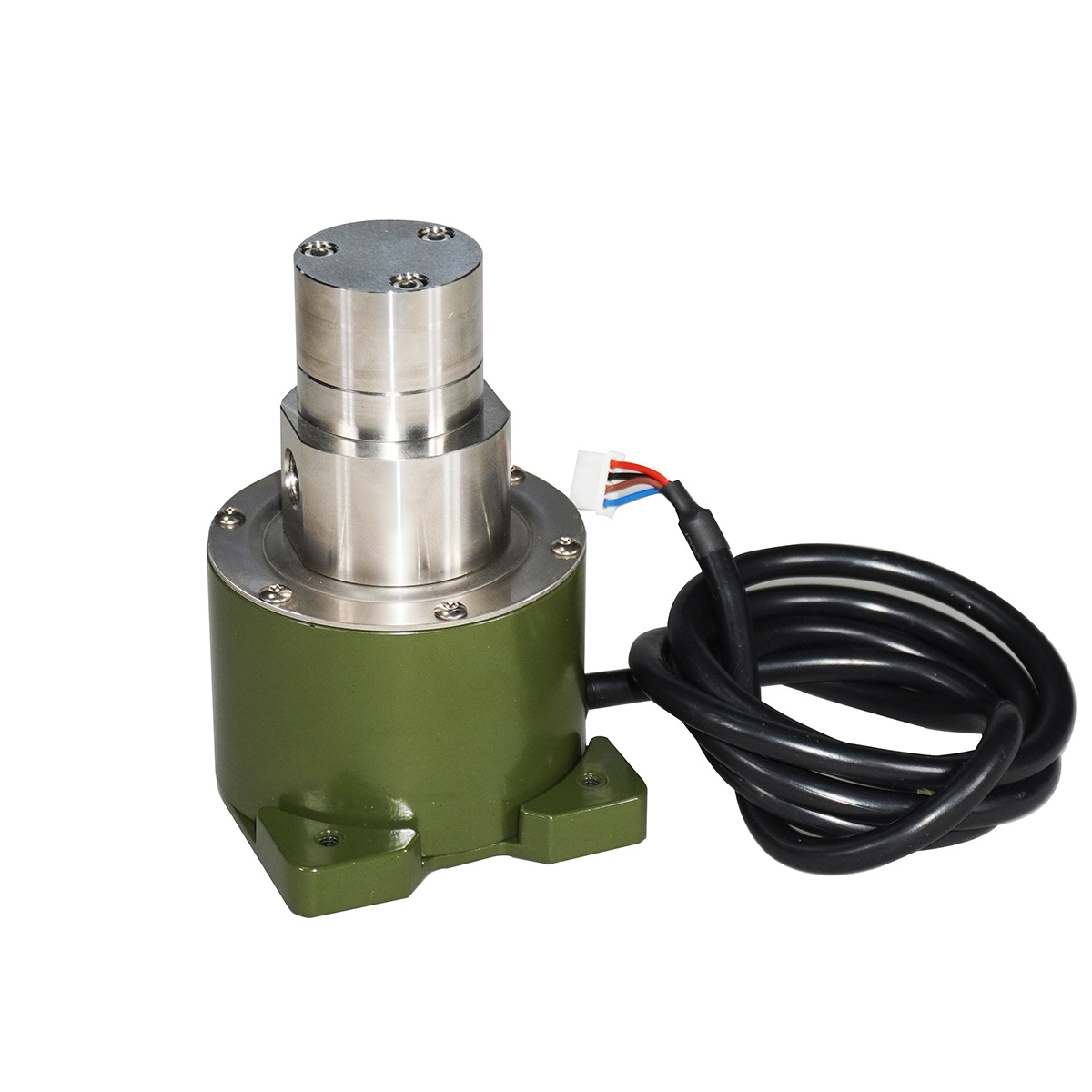

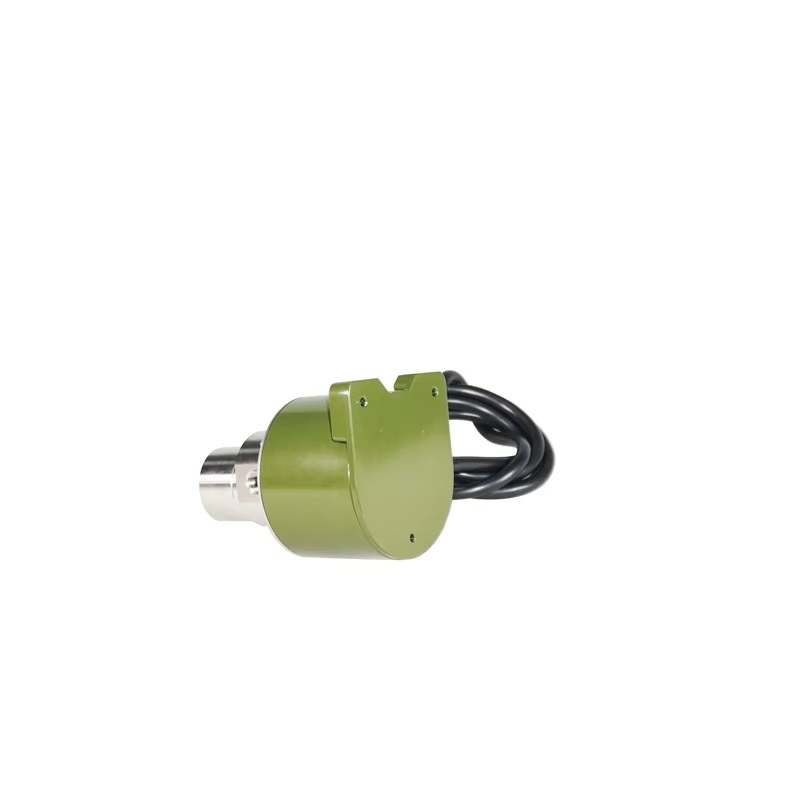

The micro magnetic drive stainless steel gear pump is a fluid delivery unit composed of a micro pump head, a permanent magnet drive and a micro motor. It is especially suitable for various liquid media (like acid and alkali, corrosive, toxic , flammable,explosive, hydraulic oil) transportation, dripping, sampling, circulation, diversion, spraying, flushing, perfusion, cooling and lubrication.
Advantage
1. compact structure, pump head and motor are integrated, and the brushless driver is integrated in the motor tail.
2. 316 stainless steel pump body, PEEK gear, self-lubricating, organic solvent resistance, corrosion resistance, high temperature resistance, high friction resistance.
3. PTFE static sealing, no leakage.
4. The flow can be adjusted
5. Multiple motor for option
6. Smooth operation and low noise
7. Wide applicable media.
Model Specifications
| Model | 32 | S | GE | I | 0.33 | DCB66-24-40W | DLC |
| Position | (1) | (2) | (3) | (4) | (5) | (6) | (7) |
(1)the outer diameter of the pump head:32mm,36mm,38mm...
(2):Pump head material,S-316L,P-PPS,H-Hastelloy Alloy, no letter means 304
(3):Magnetic drive
(4):with I represents inlet and outlet on the same side,without I means the Inlet and outlet ondifferent sides
(5):output volume,ml per rev(we have 0.18,0.33,0.65,0.94 and 1.22ml/rev for option)
(6):DCB-Brushless motor,AC:AC motor,STM:stepper motor,SEM:servo motor;

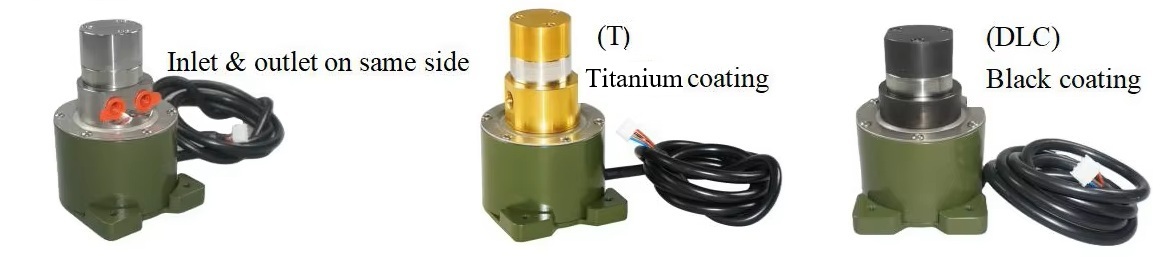

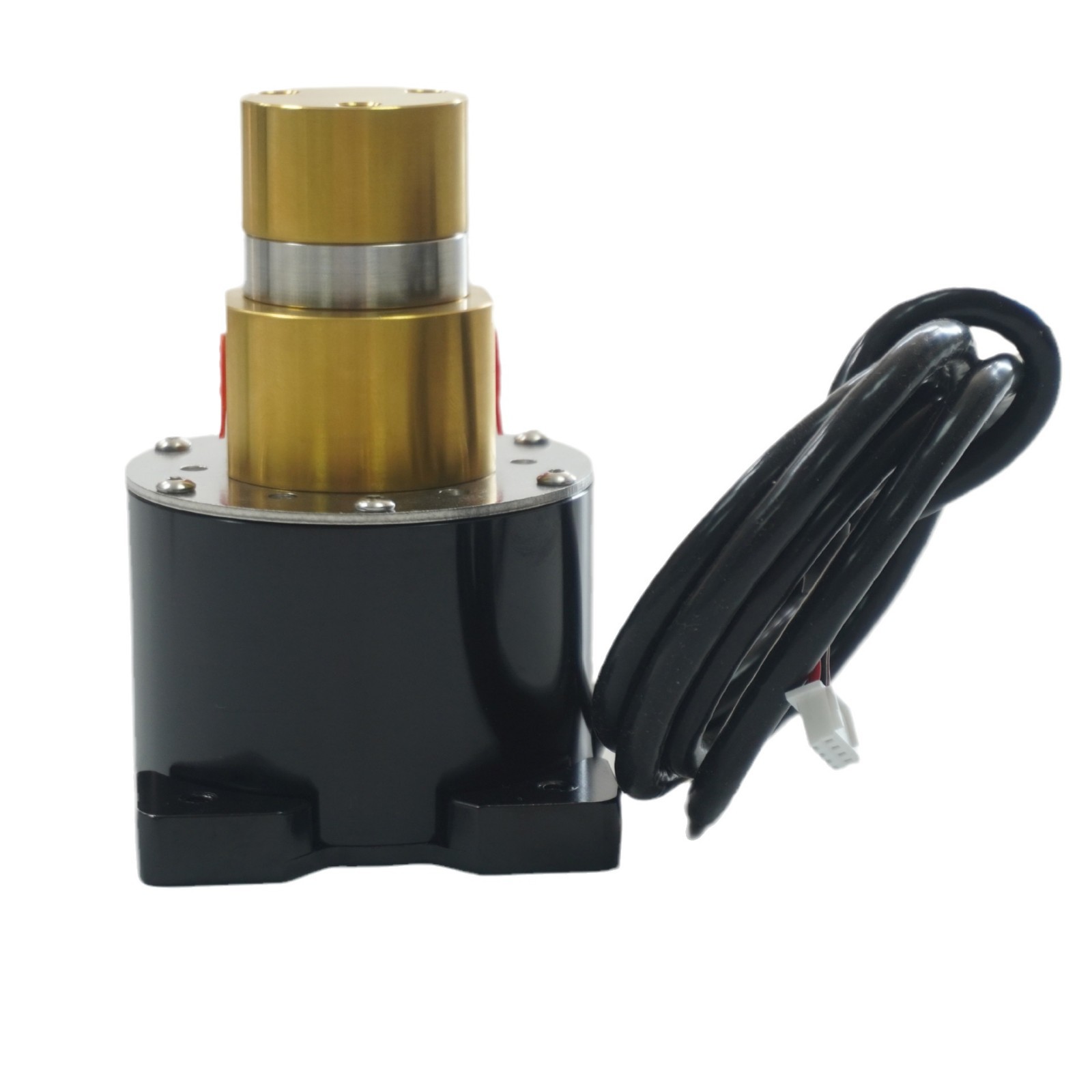

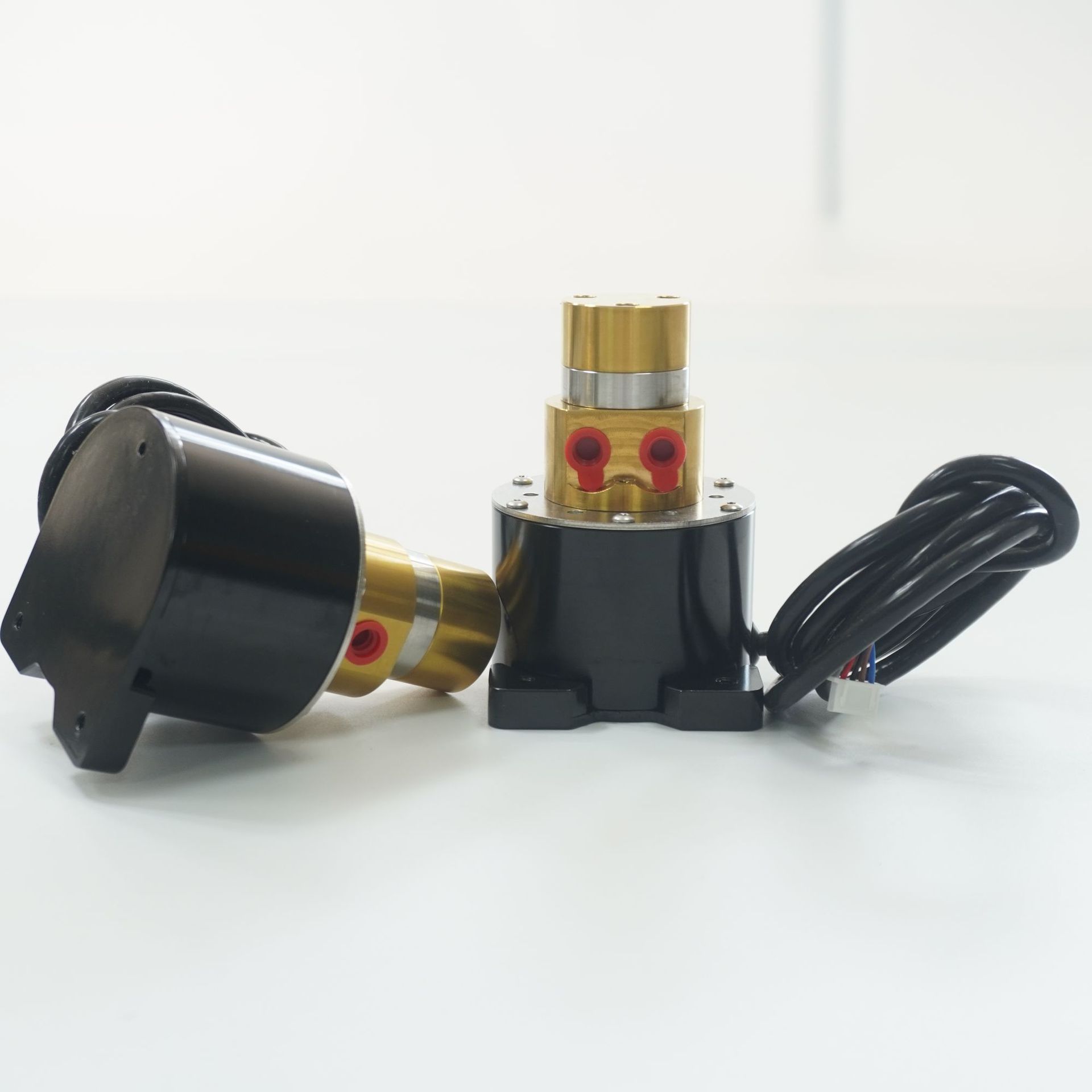

(7):with D means integrated with pressure relief valve;without Dmeans no pressure reliefvalve;T for Titanium Nitride coating,C for DLC coating,no T and C for nocoating
Parameters
|
Model number |
32SGE0.18DCB66-24-40W |
32SGE0.3DCB66-24-40W |
32SGE0.6DCB66-24-40W |
32SGE0.9DCB66-24-40W |
32SGE1.2DCB66-24-40W |
|
Output volume |
0.187ml/rev |
0.33ml/rev |
0.65ml/rev |
0.94ml/rev |
1.22ml/rev |
|
Max Flow |
900ml/min |
1500ml/min |
3000ml/min |
4500ml/min |
6000ml/min |
|
Gear thickness |
2.6mm |
4.6mm |
9mm |
13mm |
17mm |
|
Outlet pressure |
Max 5 Bar |
Max 5 Bar |
Max 5 Bar |
Max 3 Bar |
Max 2 Bar |
|
Inlet/outlet spec. |
G1/8 |
G1/8 |
G1/8 |
G1/4 |
G1/4 |
|
Wetted part material |
Pump body -SS316L,Gear-PEEK, Seal-PTFE |
||||
|
Motor |
DC brushless |
||||
|
Motor life |
10000H |
||||
|
Working voltage |
DC 24V |
||||
|
Speed regulation voltage |
DC 0-5V |
||||
|
Motor Speed |
500-5000r/min |
||||
|
Motor Power |
40 W |
||||
|
Rate current |
2.5A |
||||
|
Insulation class |
Blevel |
||||
|
Noise |
65dB |
||||
|
viscosity range |
<1500cP |
||||
|
Fluid temperature |
0 to 80℃(non-frozen) |
||||
|
ambient temperature |
5 to 40℃ |
||||
|
Weight |
0.737kg |
0.774kg |
0.761kg |
0.775kg |
0.791 |
|
Wire diagram |
red:+24V black:— GND brown: 0-5V blue: FG output |
||||

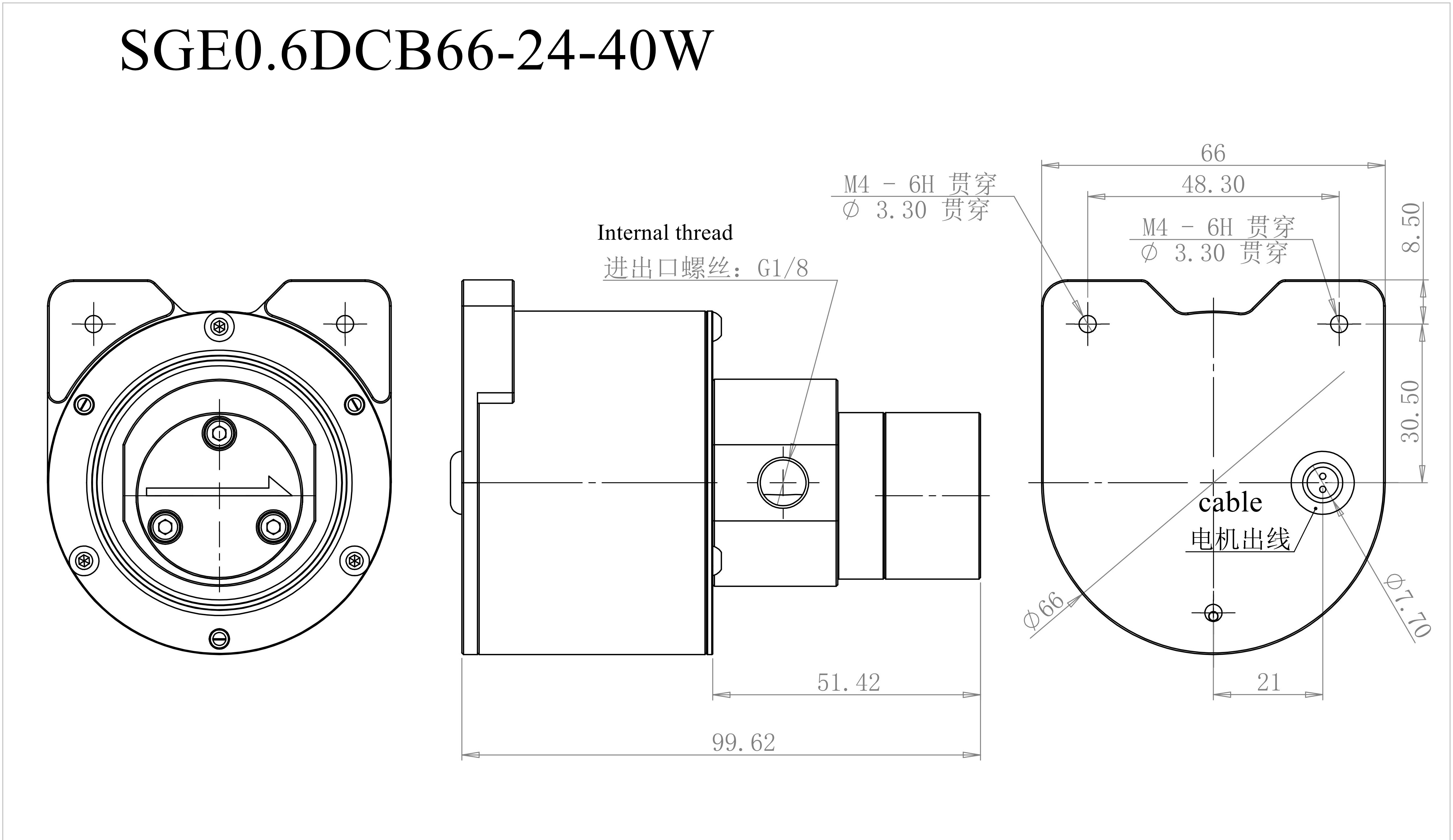

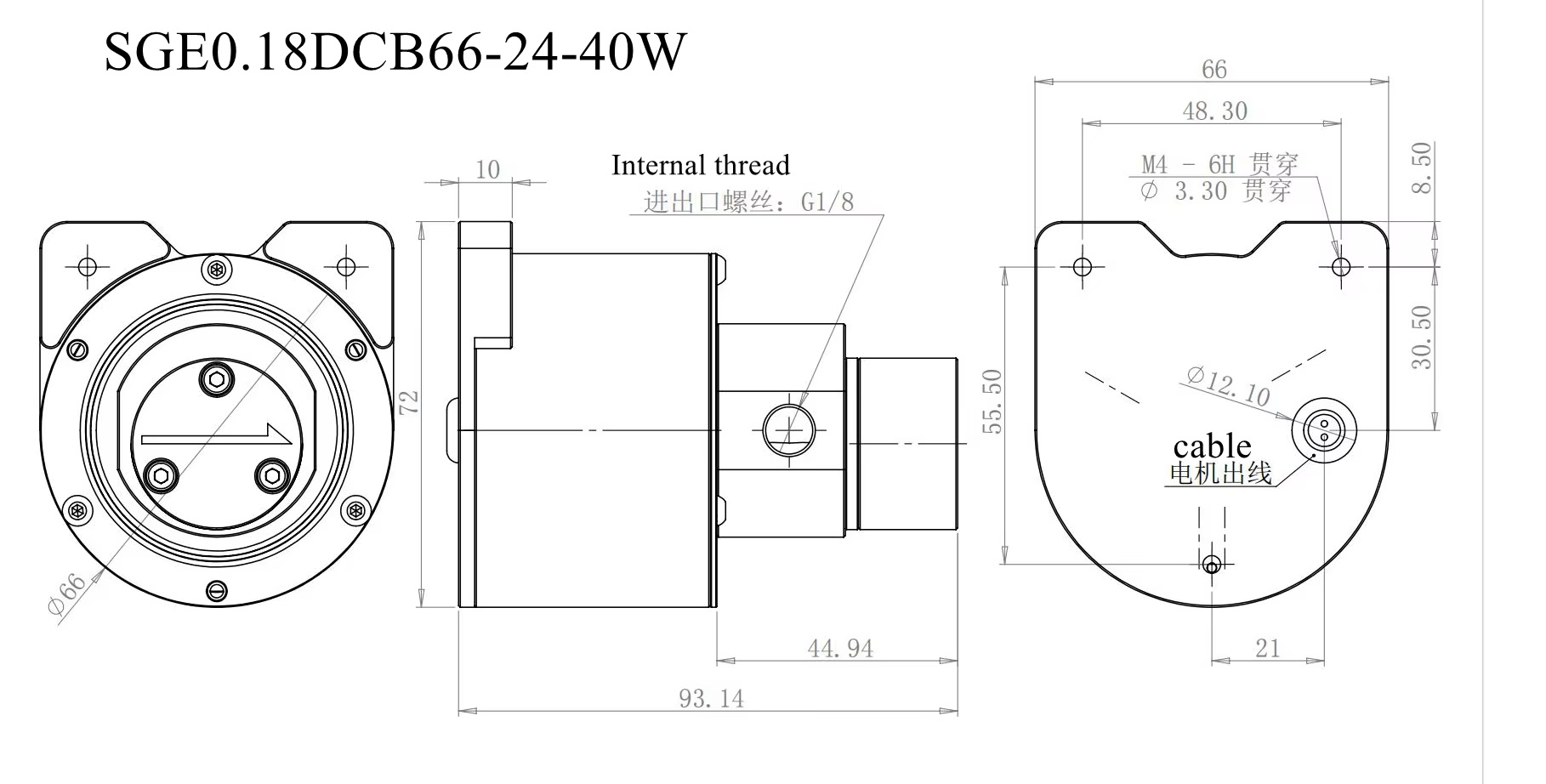

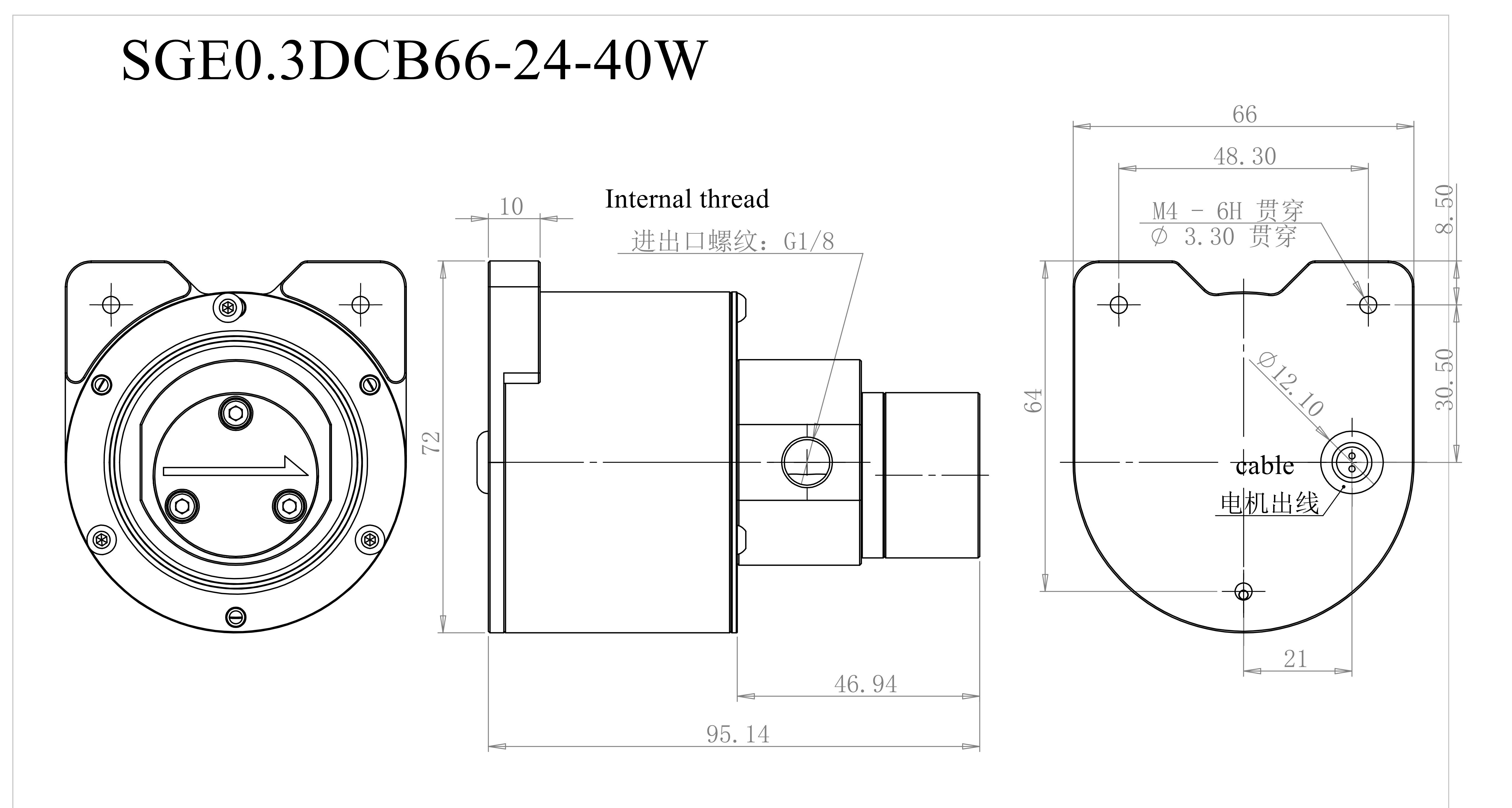

Outline drawings

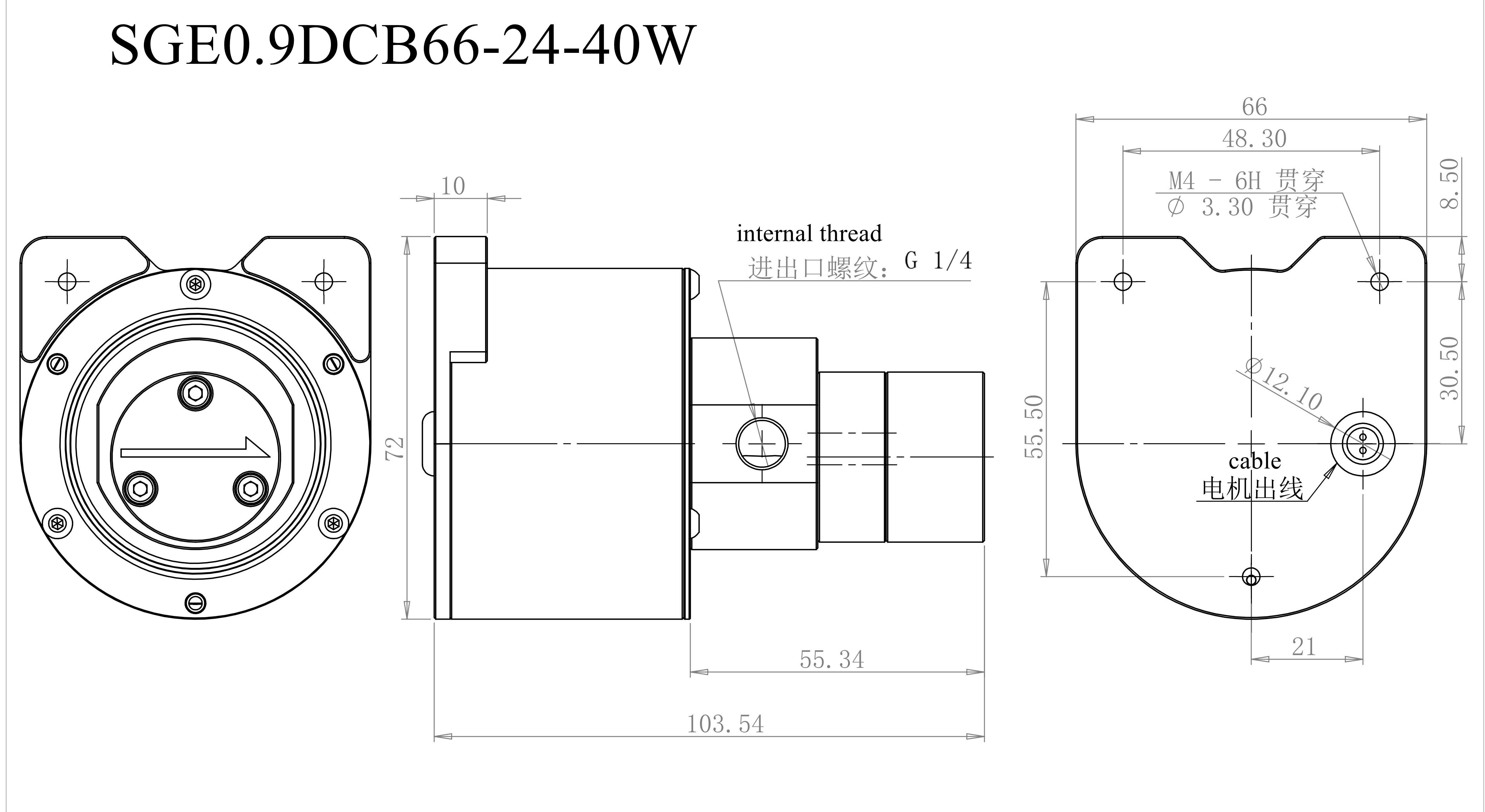

32SGEI0.9DCB66-24-40W

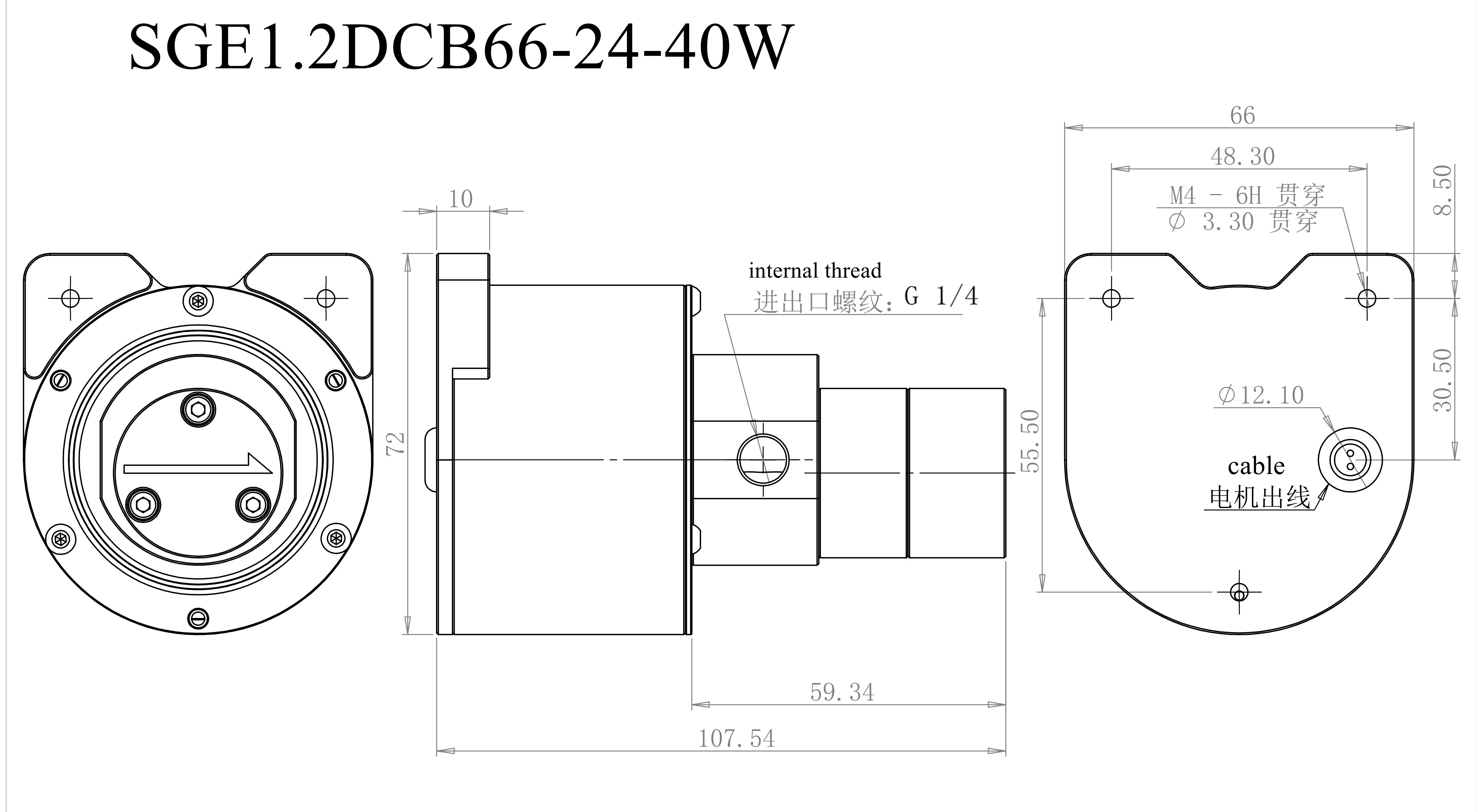

32SGEI1.2DCB66-24-40W
