MPD025 Miniature Magnetic Gear pump 0.6ml/rev.
MPD025 Miniature Magnetic Gear Pump with 30W Brushed Motor Direct Drive 2.5L/min
MPD025 Magnetic Drive Gear Pump is powered by DC brushed motor, reach 1-2.5L/M flow rate, 0.5-5bar outlet pressure resistance. Adopts to small flow and low pressure occasions.
- Low Pulse
Through the gears to provide continuous steady fluid transportation. - Compact size.Large Flow
Ideal for space-constrained equipment requiring high flow rate. - Cost-effective
Brushed motors have a relatively simple structure, mature manufacturing process and low production costs - Easy operation
Brushed motors control speed and steering by voltage regulation, the control system is very simple
Overview
MPD025 miniatur gear pump with DC brush motor is a small displacement external gear pump. It adopts SS316L material machined casing, PEEK gears, sealing ring and shaft end dynamic seal selected fluorine rubber (FKM) seal. Compact structure, small size, high flow rate, by changing the voltage to adjust the motor speed, to achieve flow regulation. Suitable for fructose machine, packaging machine, filling machine, vending machine, frying pan, food processing, cleaning and so on.
Model Specification
| Model | MPD | 025 | B | A | A | B | 24V | 30W |
| Position | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| 1 | Pump Series | MPB: Rubber O-Ring Seal MPC: PTFE gasket seal MPD: Direct Drive (non-magnetic) |
||||||
| 2 | Flow | 0-2.5L/min | ||||||
| 3 | Pump Body | A：304； B：316L； C：PPS； D：Hastelloy; E: Titanium alloy | ||||||
| 4 | Gear/Shaft | A: Gear PEEK+ shaft 316L B: Gear PEEK+ shaft ceramic C: Gear PEEK+ shaft tungsten steel D: Gear PEEK+shaft titanium alloy |
||||||
| 5 | Inlet/Outlet Thread | A: G1/8 B: G1/4 C: G3/8 D: G1/2 E: G3/4 F: G1 ” G: G1″1/4 H: M5 X: other customzations; (Letter: tooth) 1:25.4 2:34 3:38 4:50.5 5:640: Other customizations (Number: Chuck) |
||||||
| 6 | Motor | A：BL( DC Brushless Motor) B：DC(DC Brushed Motor) C：SM(Stepper Motor) D：SVCA （Servo Motor） E：ACIM 3 Phase Asynchronous Induction Motor F：ACIMB （Explosion -Proof 3 Phase Asynchronous Motor） G：BLB （Explosion Proof Brushless DC Motor） |
||||||
| 7 | Voltage | 12V/24V / 48V / 220V / 380V | ||||||
| 8 | Power | 30W/40W/60W/70W/80W/100W/110W/150W/200W/250W/300W/370W/400W/550W/750W/1000W | ||||||
Technical Paramaters
| Model | Medium Viscosity | Medium Temperature | Pressure Difference | Inlet vacuum level | Motor | Motor Speed |
| MPD025BAAB24V30W | 0~3000cps | -30℃~120℃ | 5Bar | -0.85Bar | 30WBDC | 500-4500rpm |

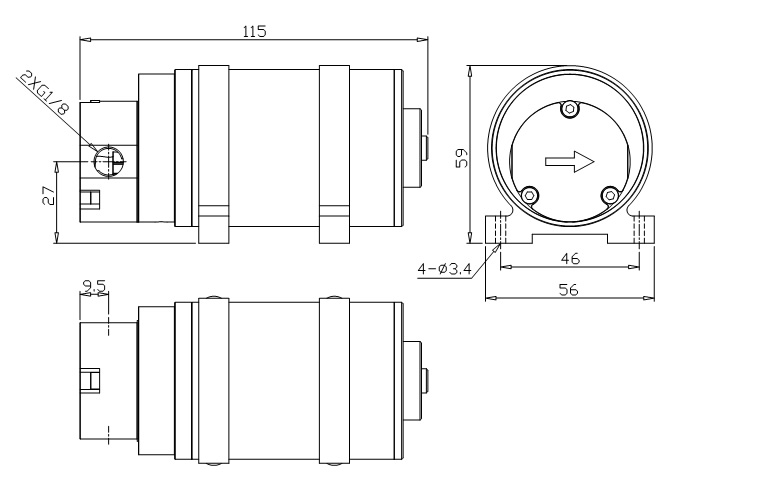

Dimensions
Performance Curve
Exploded View Drawing
|
1 |
Inner-hexagon screw*3 |
2 |
Front end cover |
3 |
Dowel*2 Sealing ring 1 |
|
4 |
Shaft sleeve*6 |
5 |
Driving gear |
6 |
Driven gear |
|
7 |
Shim Pump Chamber/ Pump body |
8 |
Sealing ring 1 |
9 |
Sealing ring 2 |
|
10 |
Sealing ring 2 |
11 |
Main body/Champer pump |
12 |
Oil seal |
|
13 |
Motor |
14 |
Mounting bracket |
|
Installation and usage instructions
1. Remove the inlet and outlet plugs and install matching threaded joints. The inlet and outlet joints of the pump must be wrapped with raw material tape, especially at the inlet, as there will be no suction if there is air leakage.
2. The pump should be placed as close as possible to the liquid source, and the size of the inlet and outlet pipes should not be smaller than the size of the pump body joint. The pipe length should be shortened as much as possible, and if the pipe is too long, the pipe diameter should be increased.
3. Install in the direction indicated by the arrow on the end cap during installation, otherwise liquid cannot be absorbed.
4. Please ensure that there is liquid inside the pump body. If the dismantling pipe is not used for a long time, please install a plug to protect the gear. Otherwise, dry transfer may cause permanent damage to the pump.
5. When using the pump for the first time, please flush the pump pipeline and install a filter in the inlet pipe. The filtration accuracy requires that the particle diameter in the liquid be less than 20 microns.
6. When the pump is working continuously, please cool it down in a timely manner.
Applications
With the rapid development of domestic micro magnetic pump technology, micro magnetic pump has been widely used in various fields of society, such as food and beverage, cosmetics, mechanical coding, life science, chemical measurement, etc., and has gradually become an indispensable core component of industrial equipment
• Refrigeration/Cooling • New energy • Fire controls • Medical/Pharmaceutical • SCR/DPF • Metering/Sampling /adding /Filling • Spray / spraying / coating / disinfection and sterilization • Steam heat source engine / intelligent boiler • Lubrication • Mechanical Seal Flush • Water Treatment
Widely used in Ink-Jet printing system,Medical equipemnt, Food processing equipment, Laser apparatus, Laboratory instrumen， Refrigeration Industry(Cooling Pump & Freon Pump), Cooling systems, Fuel Cell Technology, Mechanical Seal Flush, Environmental Water Treatment and other more fileds.
Application fields
Product Functions
Circulation/Dosing /Metering /Transfer
