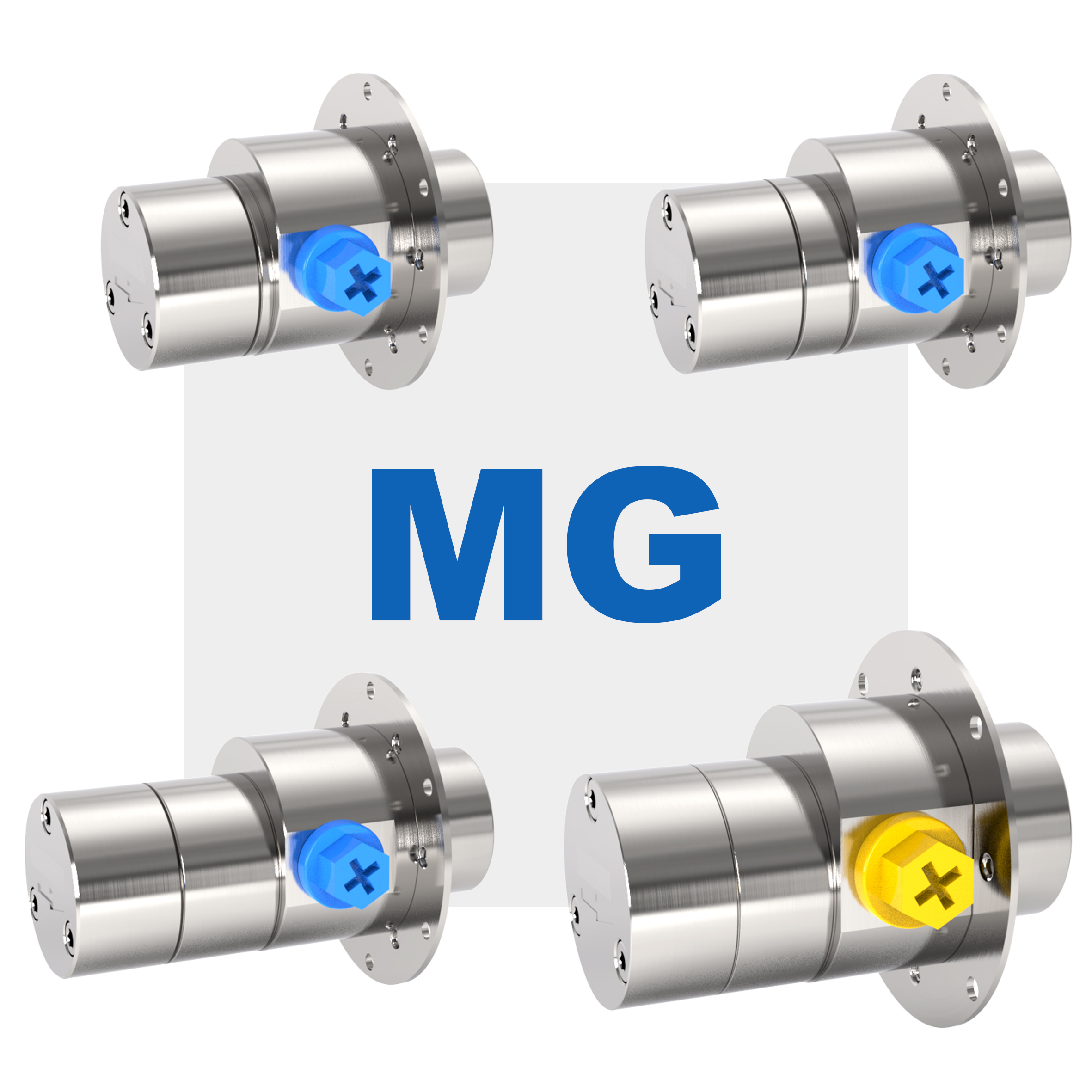

MG Magnetic Drive Gear Pump 0.07cc-3.0cc/rev.

PRODUCT DESCRIPTION

The pump body material is food grade 316L, the gear and shaft sleeve material is modified high-strength PEEK, and the sealing standard is FKM (PFA, EPDM, FFKM, etc. are optional). The overall pressure resistance of the gear pump is 1MPA, suitable for most solvents, acids and bases, organic halides, hydrocarbons, organic nitrides, inorganic reagents, etc.

PRODUCT ADVANTAGES

No leakage; Low noise; Long service life; Corrosion resistance; Stable export pressure without pulsation; Simple structure and easy maintenance.

APPLICATION SCENARIOS

Micro cooling devices for aerospace vehicles, chemical and chemical industries (such as reagents, pharmaceuticals, film manufacturing, pharmaceutical equipment, etc.), various laser equipment and instruments, printing and coding machine manufacturing, high-performance color printing equipment, charging pile liquid cooling systems, molecular distillation equipment, methanol to hydrogen equipment, exhaust gas treatment systems, etc.

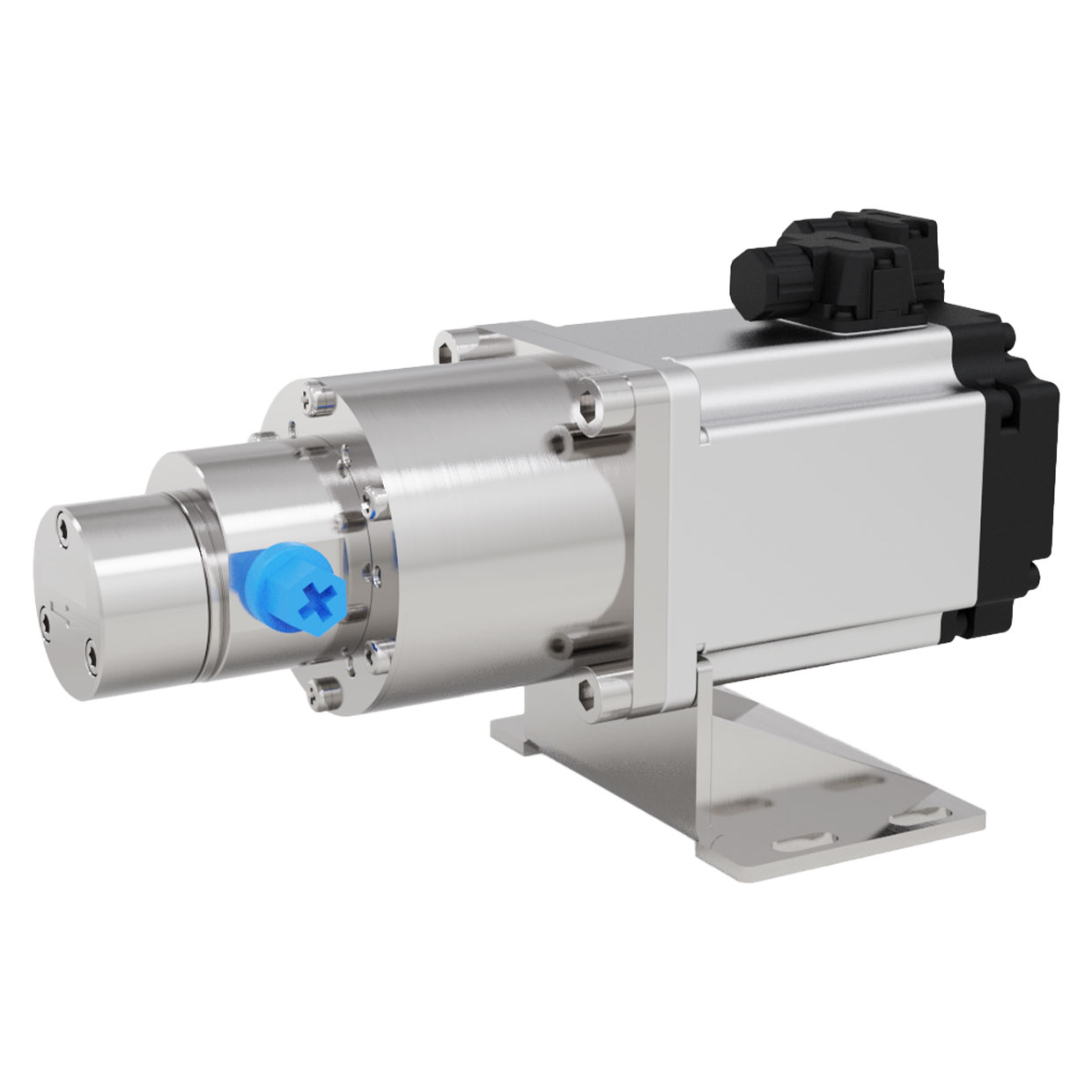

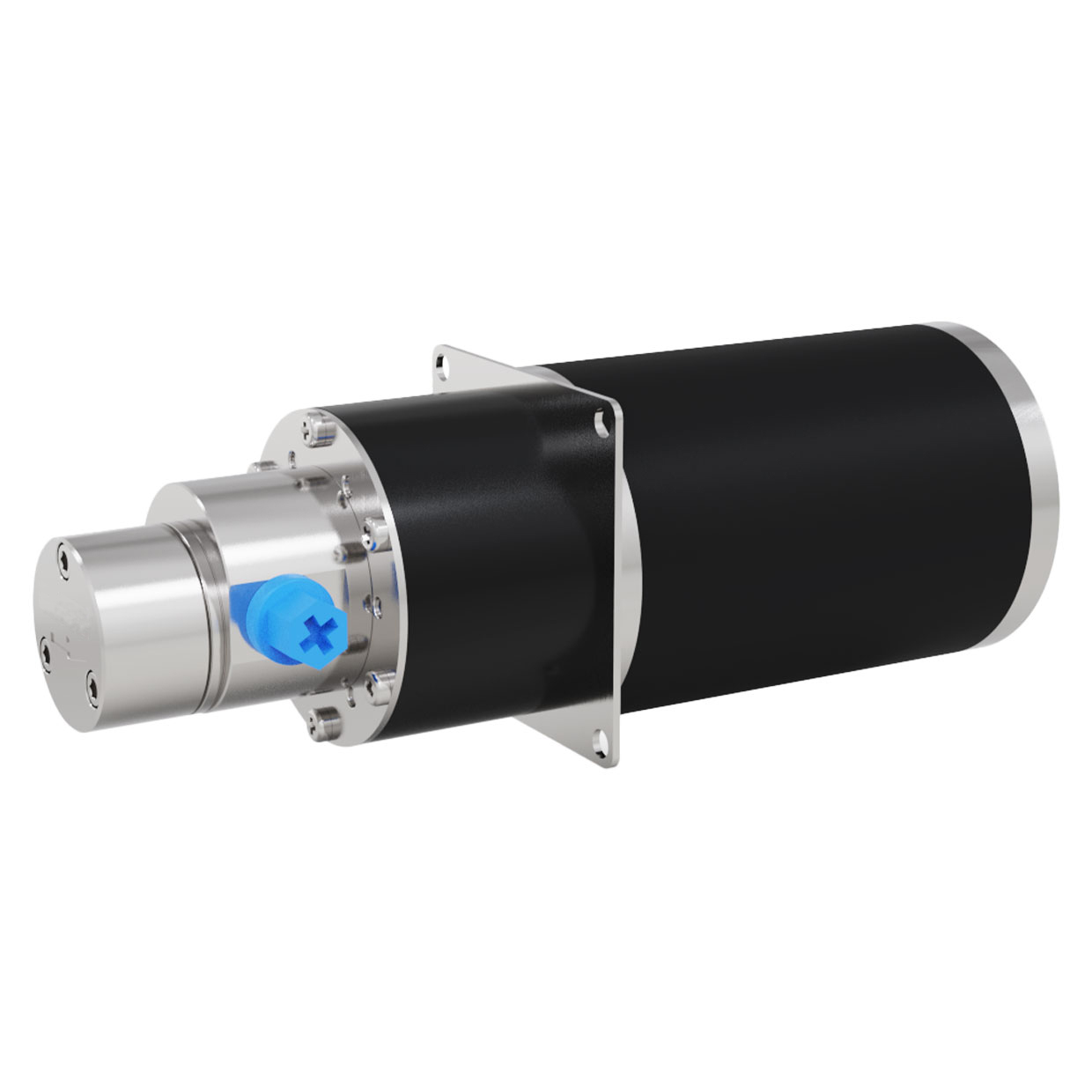

CAN BE EQUIPPED WITH A MOTOR

DC brushless motor, DC brushed motor, asynchronous motor, servo motor, etc.

STRUCTURE DIAGRAM

PRODUCT PARAMETERS

INSTALLATION DIAGRAM OF PUMP HEAD（0.07CC-1.50CC）

INSTALLATION DIAGRAM OF PUMP HEAD（1.80cc-3.0cc）

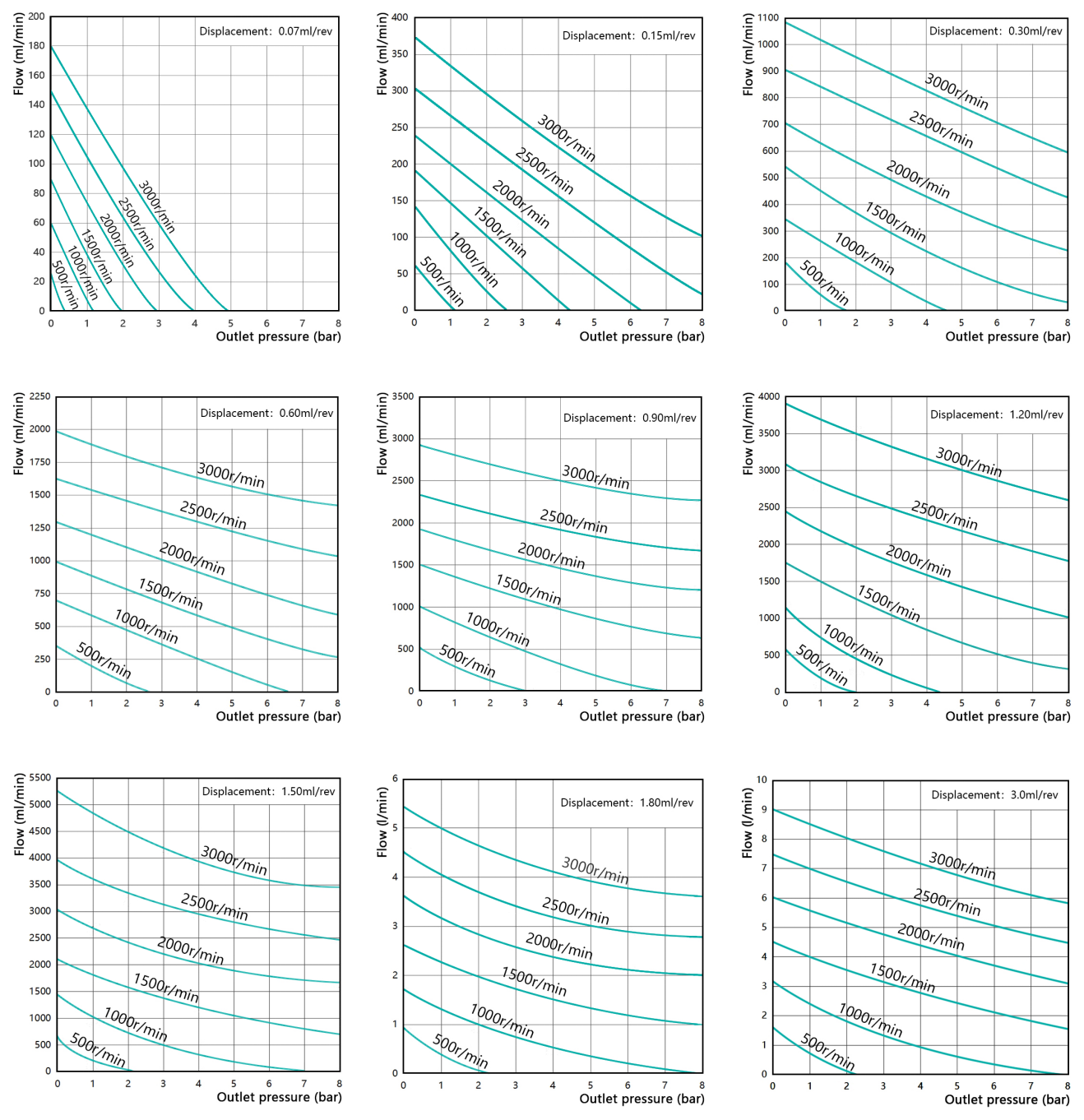

MG CHARACTERISTIC CURVE DIAGRAM (TEST MEDIUM: WATER, TEST TEMPERATURE: ROOM TEMPERATURE)

PLEASE CONSULT OUR COMPANY FOR THE COMBINATION SIZE OF PUMP HEAD AND MOTOR

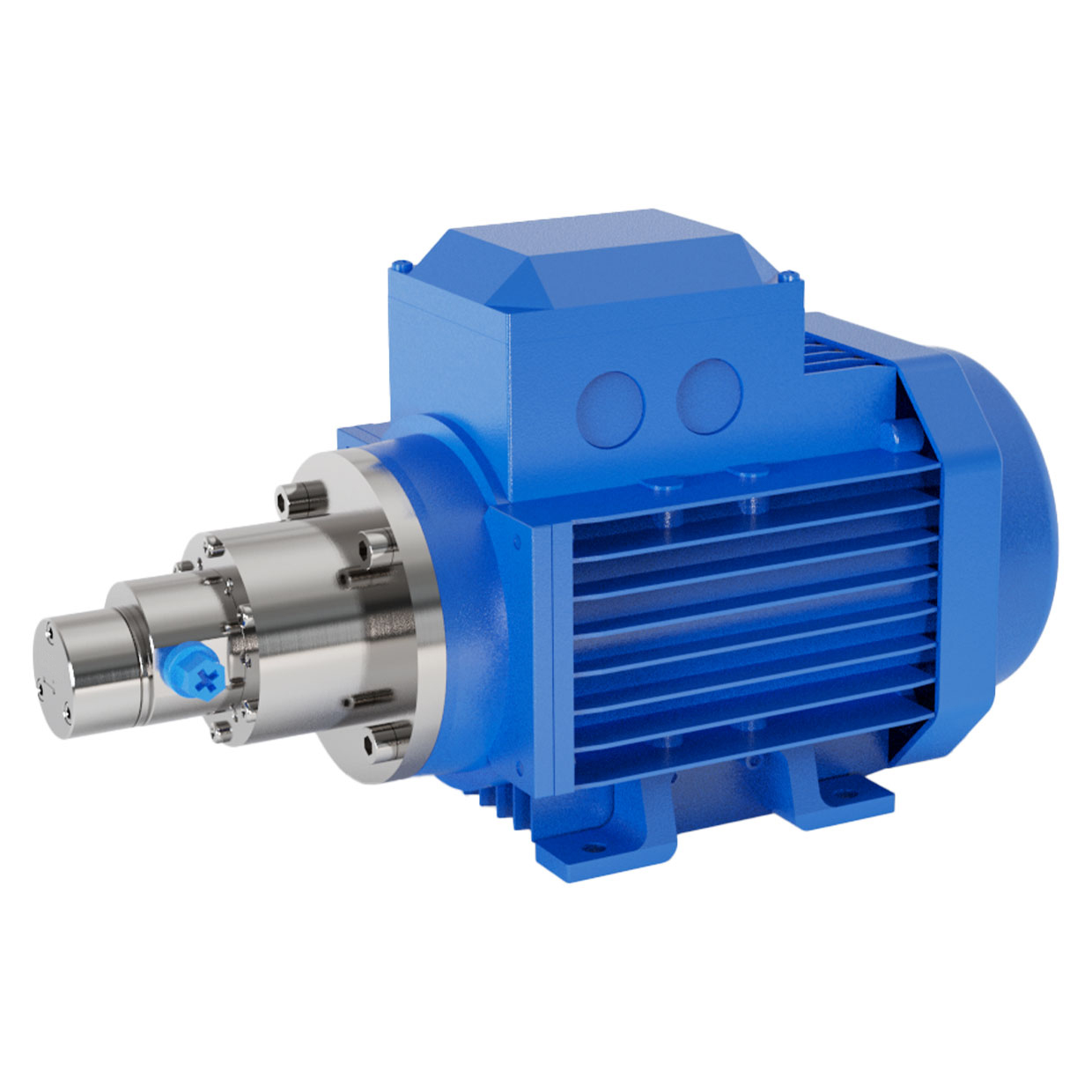

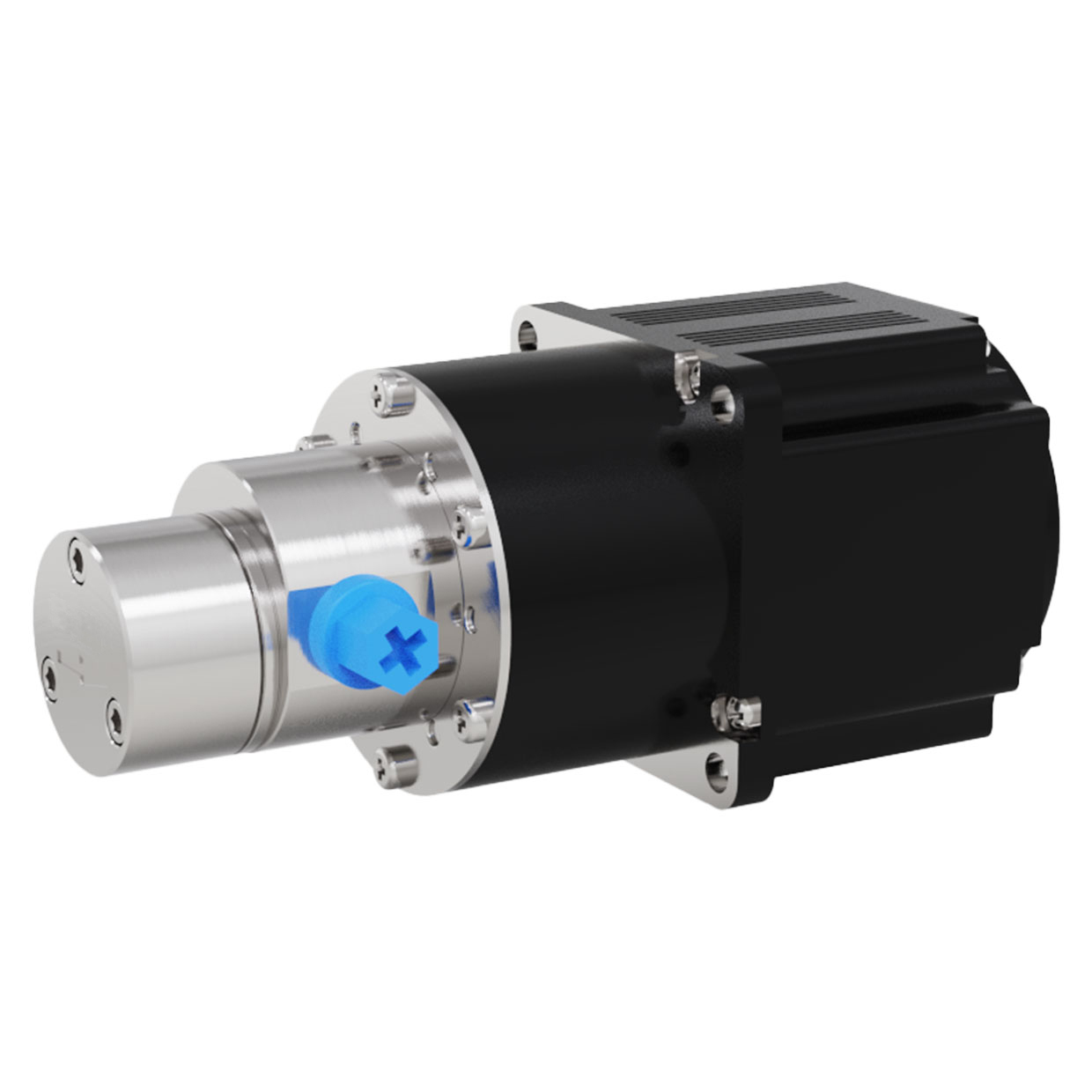

Brushless motor

Brushed motor

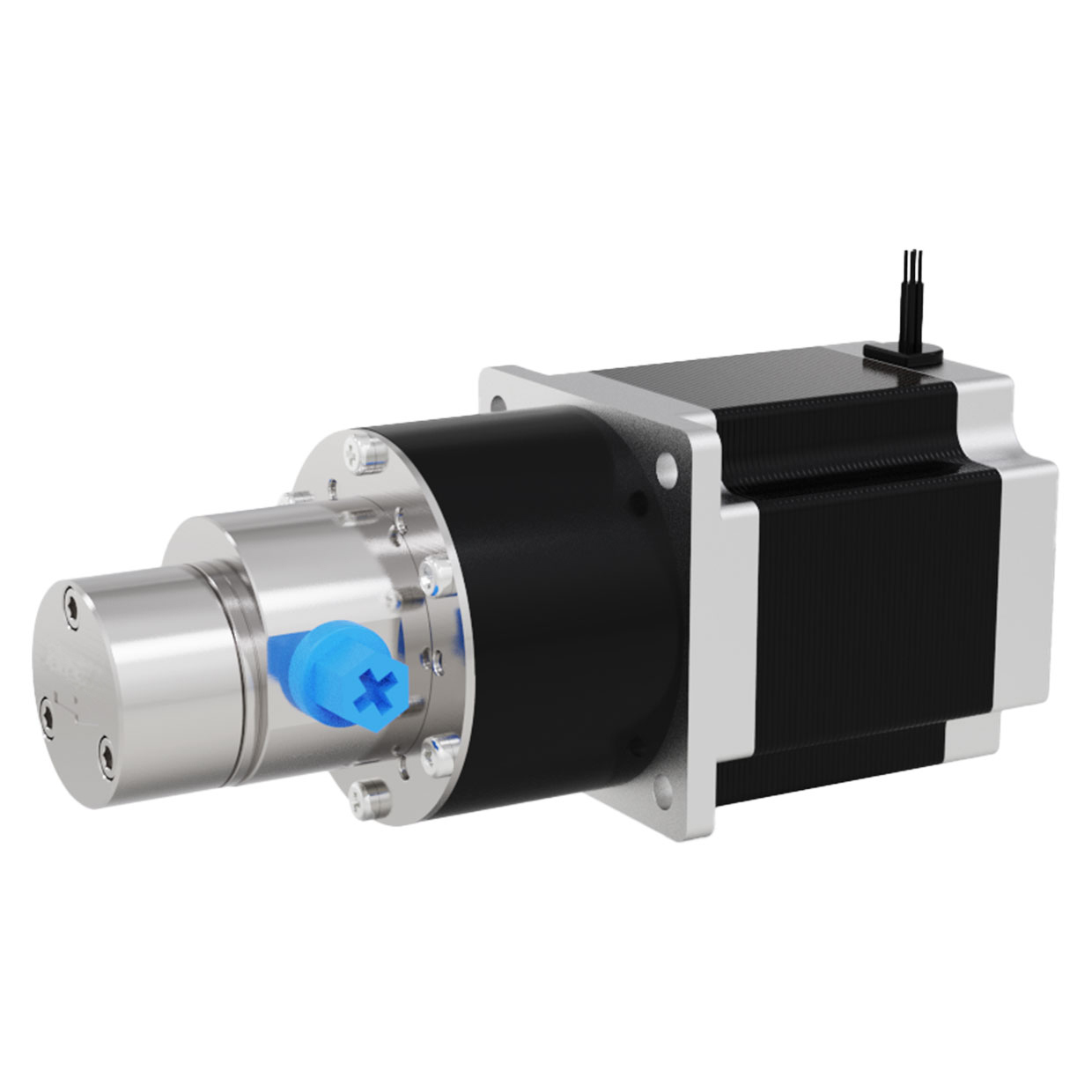

Stepper motor

Servo motor

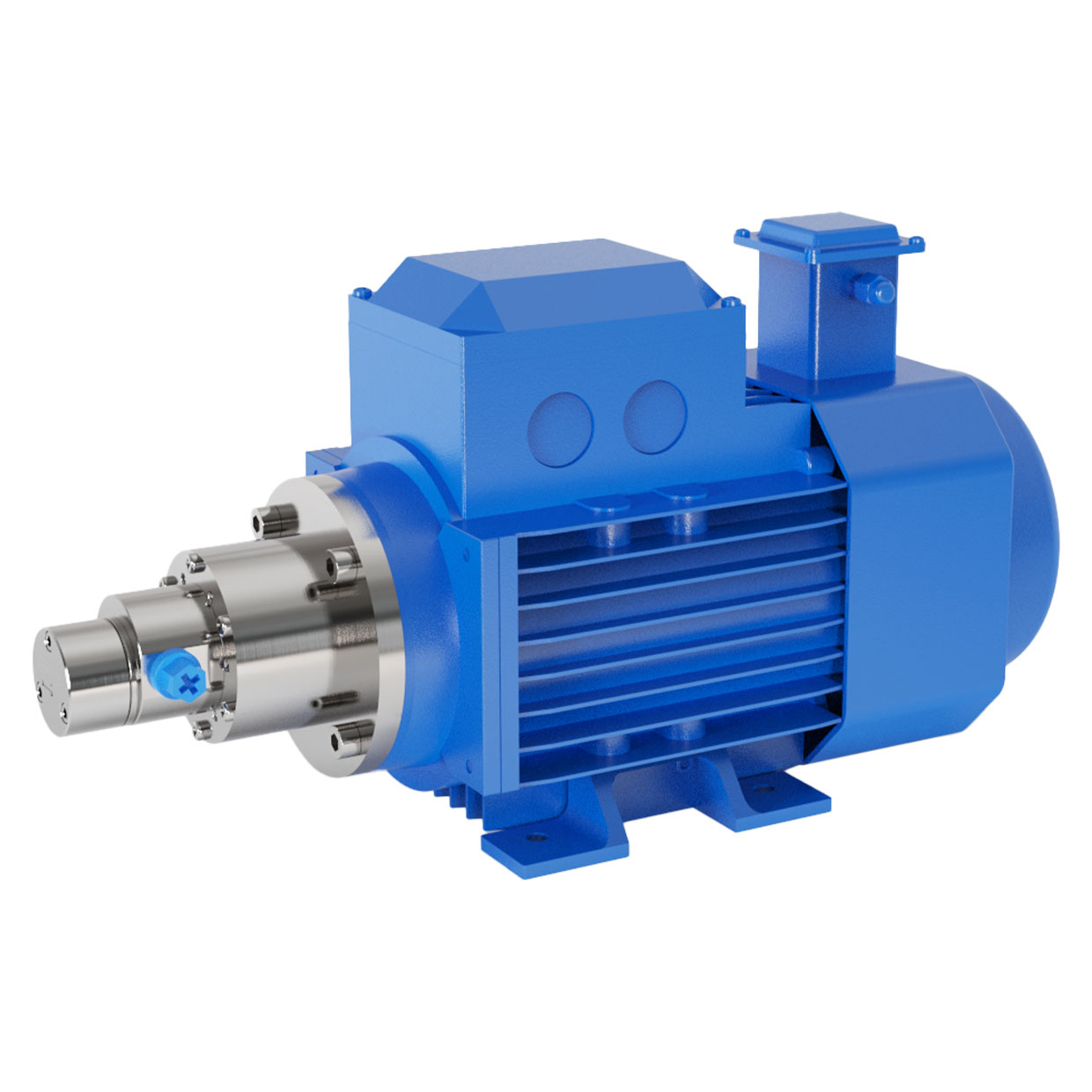

Asynchronous motor

Variable frequency motor

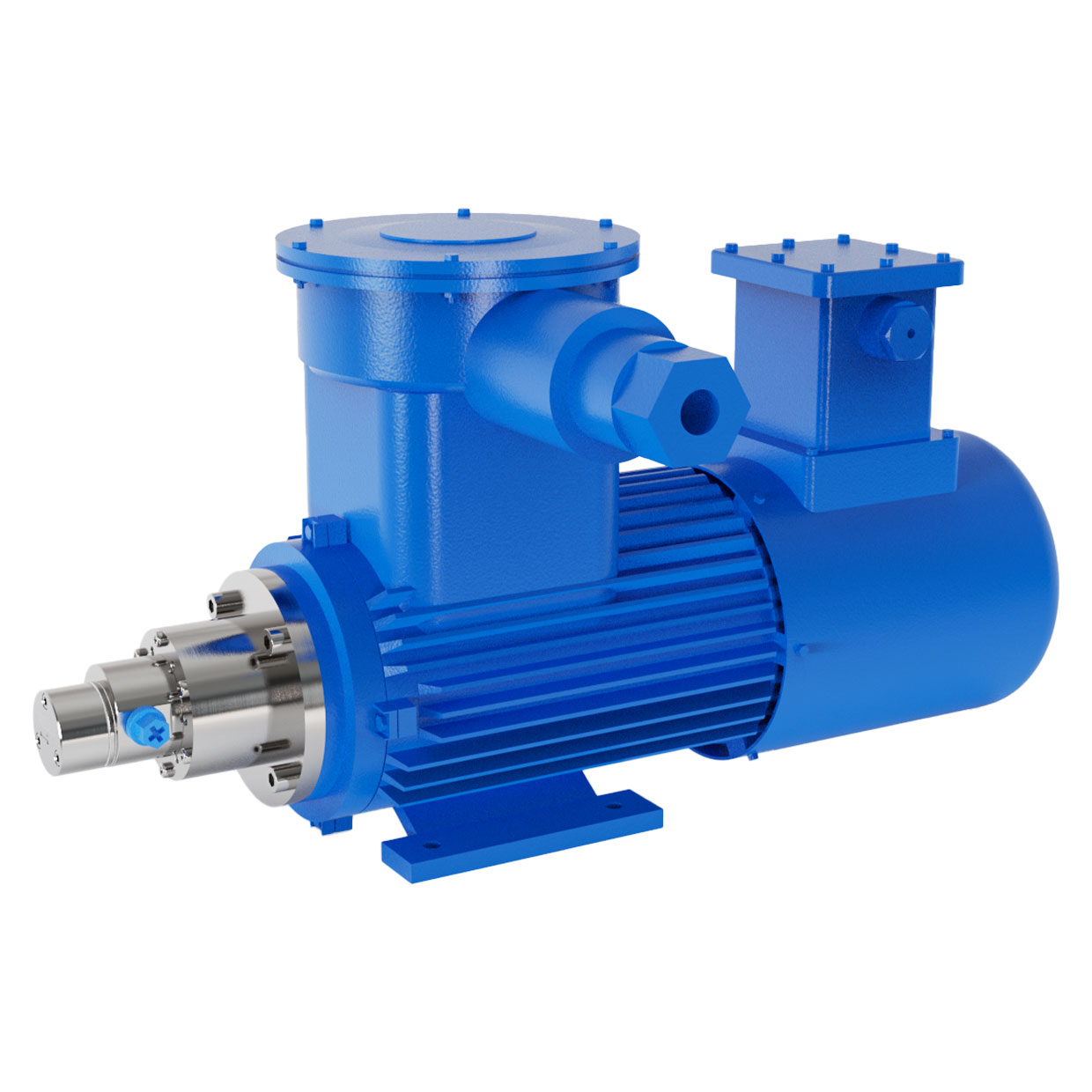

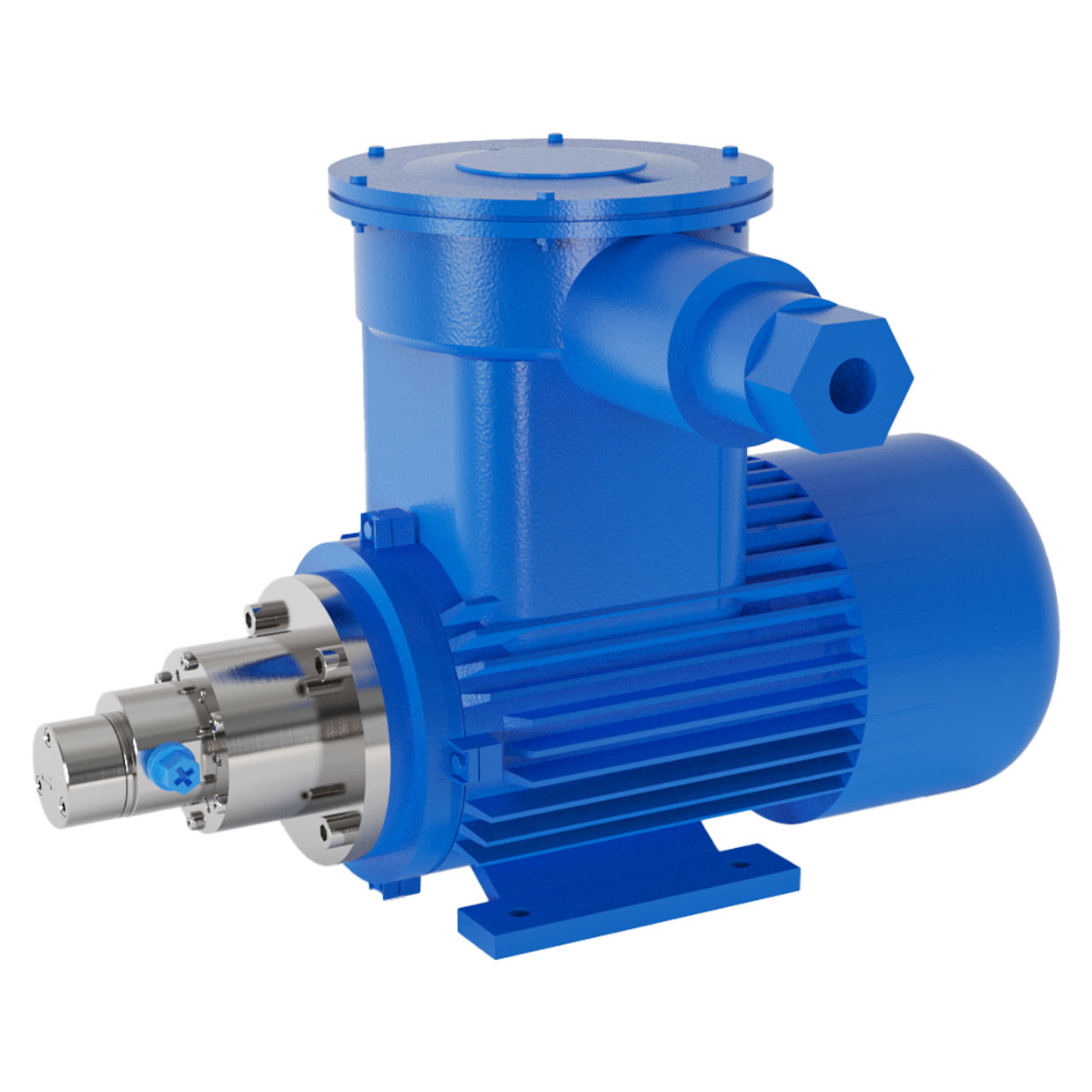

Explosion proof motor

Explosion proof variable frequency motor

MATTERS NEEDING ATTENTION

PUMP INSTALLATION

The installation position of the pump should be as close as possible to the medium source container. The diameter of the inlet and outlet pipelines should not be smaller than the size of the pump interface, and the length should be shortened as much as possible. If the inlet pipeline needs to be lengthened due to layout and installation site space limitations, the inlet diameter should be increased and the number of valves and bends at the pump inlet should be minimized as much as possible.

PIPELINE INSTALLATION

During pipeline installation: 1. Align with the inlet and outlet of the pump body as much as possible, and if possible, add pipeline support at appropriate positions; 2. Avoid the eccentric torque and weight of the pipeline directly acting on the pump, otherwise it may affect the sealing of the pump body, and long-term external forces can easily cause damage to the pump body and leakage.

Installation diagram

FILTER

The inlet of the pump should be equipped with a 25um or higher precision filter (preferably 400 mesh or higher precision). If the pump operates in a closed-loop system, the filter can also be installed at the outlet of the pump. It is recommended that the nominal flow rate of the filter be 1.5 times greater than the maximum flow rate of the pump to ensure the flow area of the medium and reduce the impact of the filter on the flow resistance of the pipeline.

USE PRESSURE

It is recommended to use within the pressure range that the pump can withstand. 1. Excessive system pressure can affect the sealing effect of the pump body; 2. Excessive pressure difference between imports and exports can cause magnetic slippage inside and outside the magnetic coupling. Excessive pressure fluctuations during use can also easily cause slippage in magnetic couplings.

SELF SUCTION

Gear pumps have strong self-priming function, but before starting, confirm that the gears have been wetted by the pumped medium.

DRY/REVERSE

Long term over speed drying can cause permanent damage to the pump. Please confirm that there is medium in the pump chamber or at least it has been wetted during operation. The pump should rotate clockwise. Short term reversal is acceptable, but prolonged continuous reversal will shorten the lifespan of the pump.

COMMON FAULT ANALYSIS
