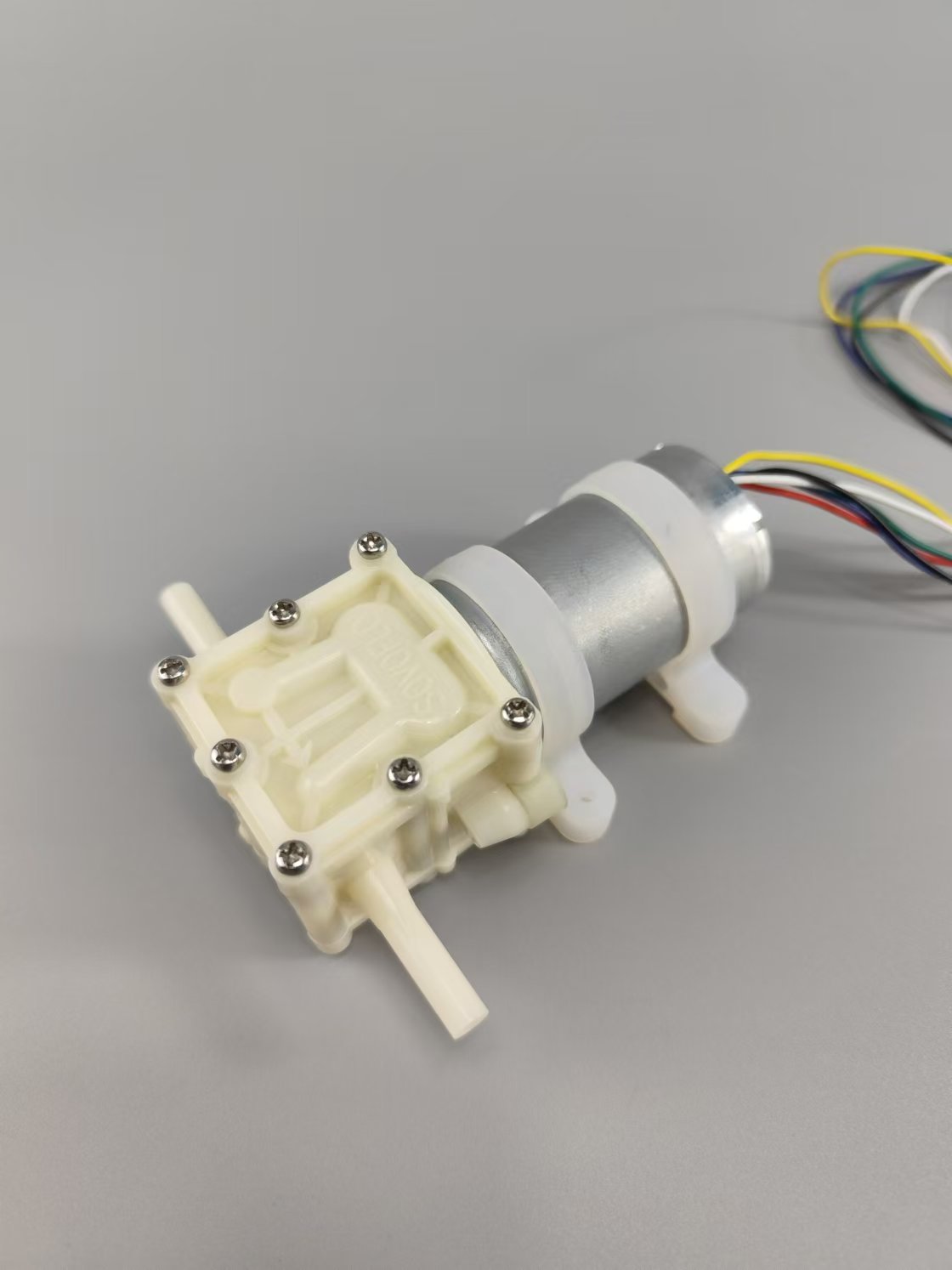

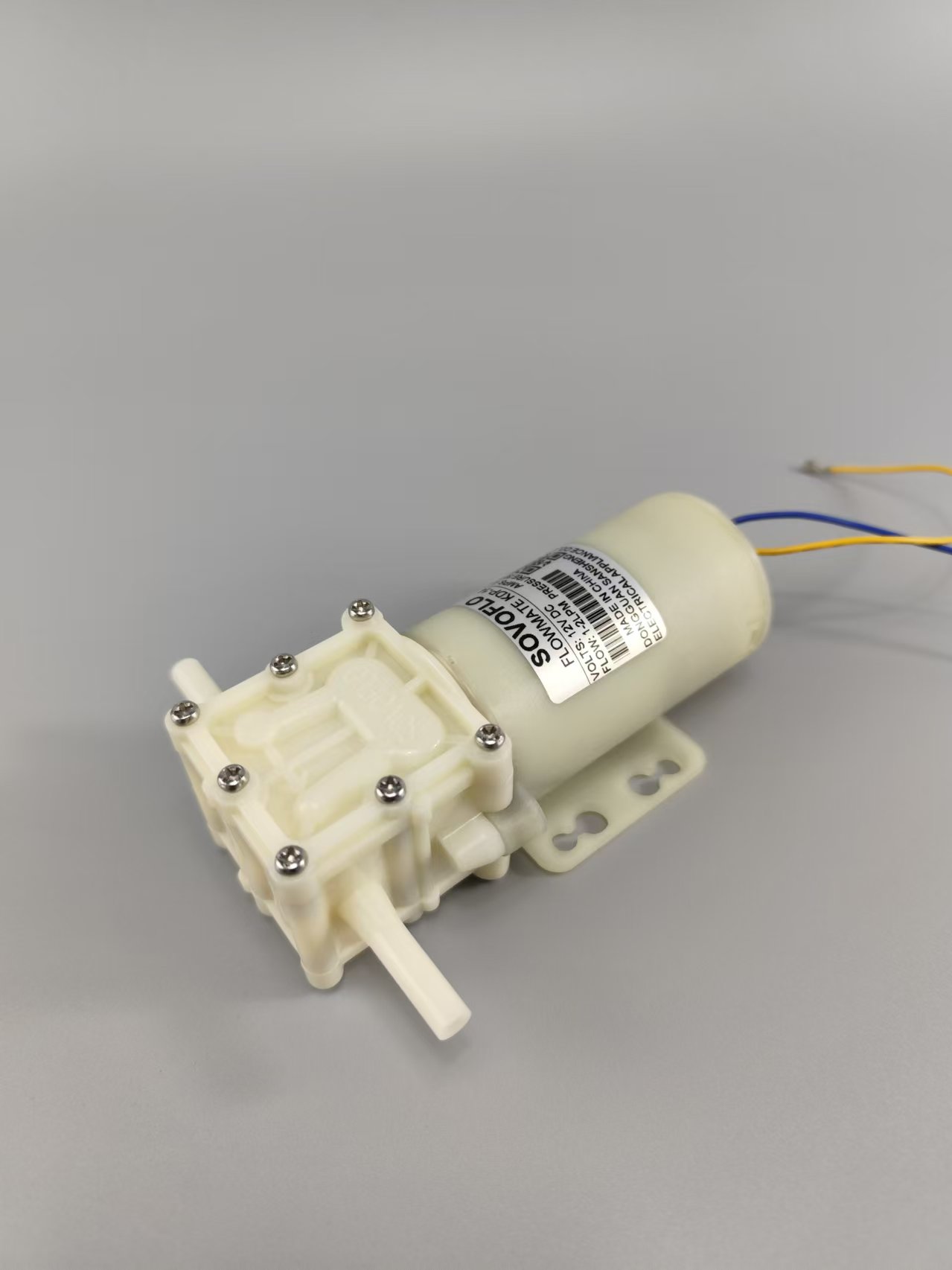

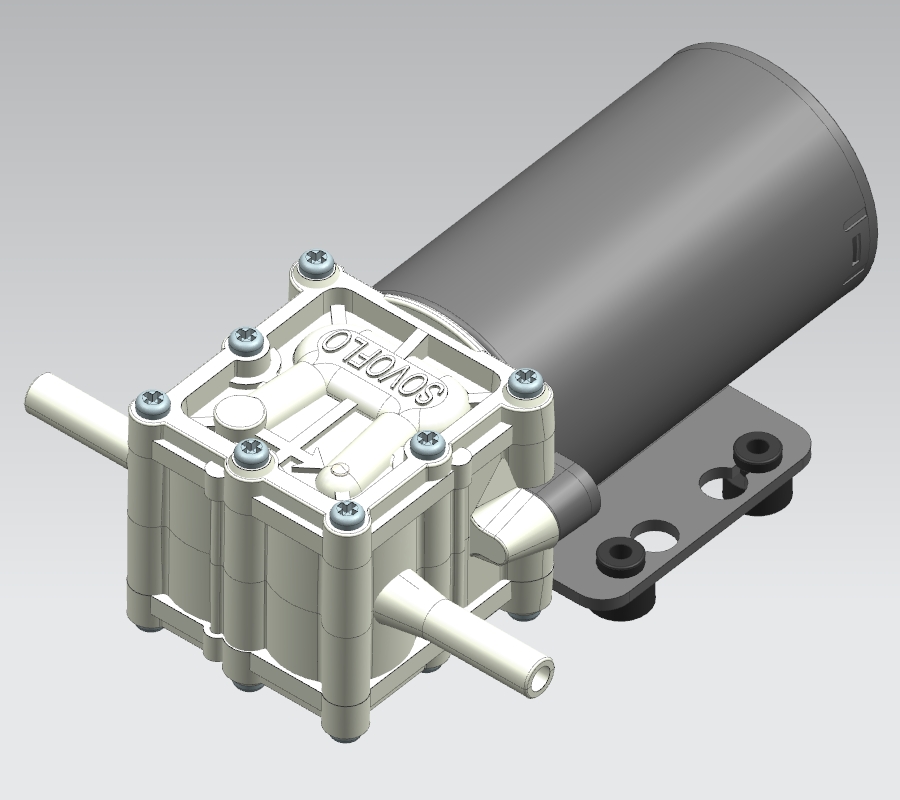

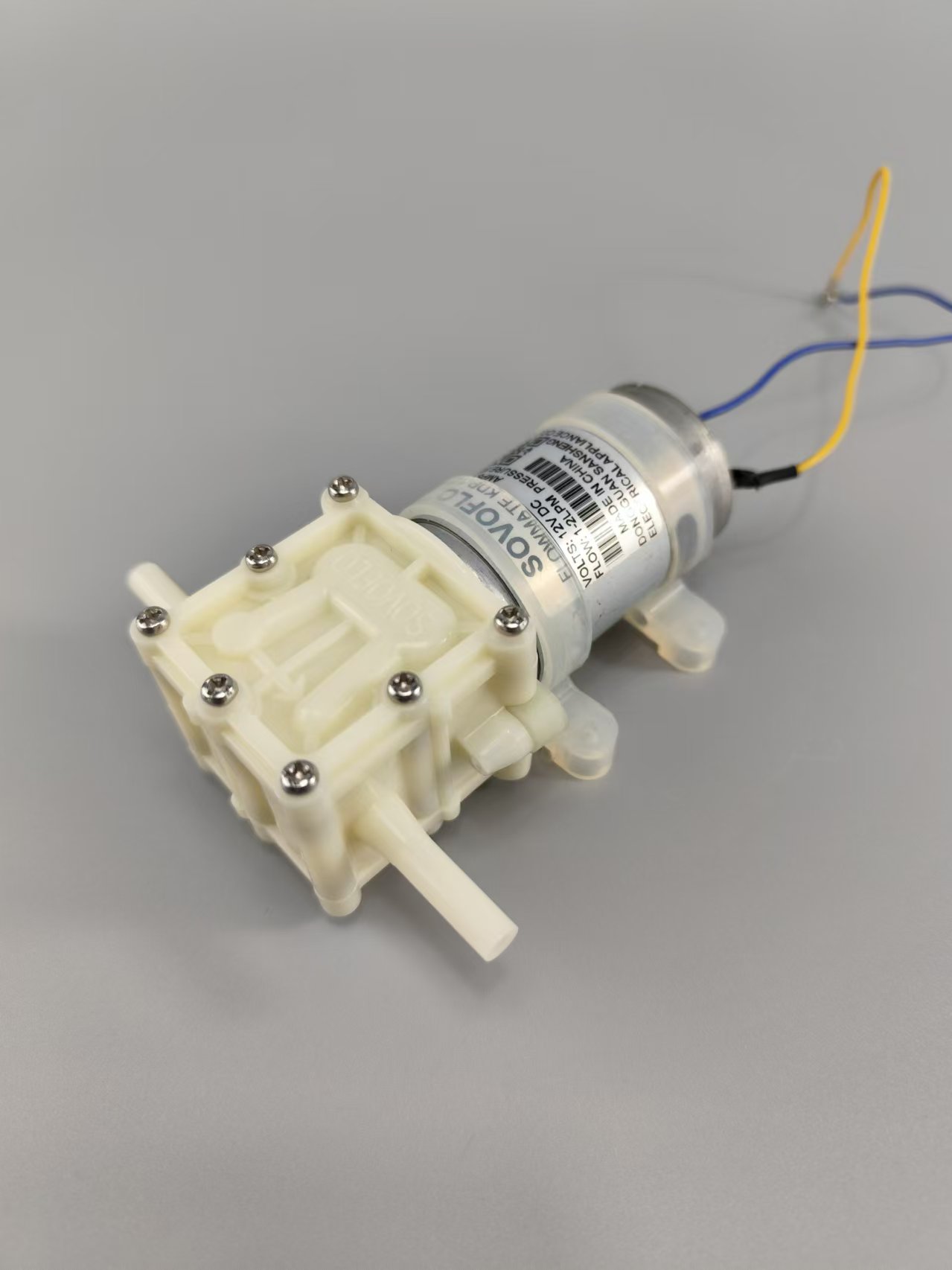

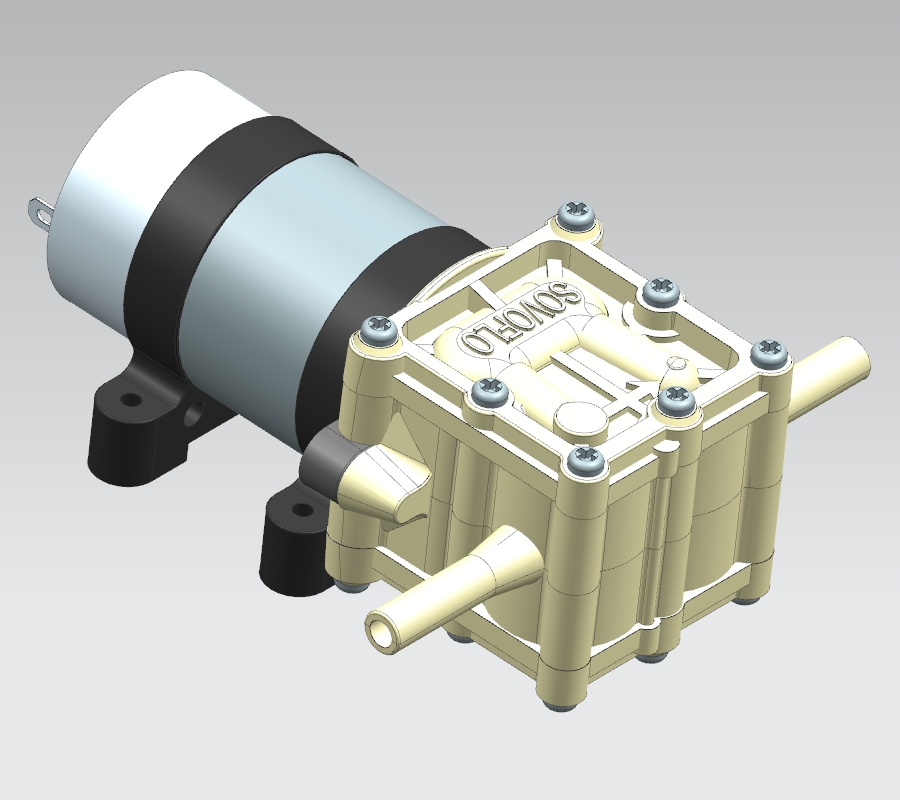

FLOWMATE Food Grade Diaphragm Pump KDP-14 Series
FLOWMATE food grade water pump diaphragm pump KDP-14 series DC Pump 12V/24V electric Pump permanent magnet brush motor drive 1-2LPM for water dispenser coffee machine vending machine
Product label: FLOWMATE, KDP-14, Pump, Water Pump, Diaphragm Pump, Membrane Pump, Mini Pump, Micro Pump, DC Pump, DC Water Pump, DC Diaphragm Pump, DC Membrane Pump, Mini Water Pump, Mini Diaphragm Pump, Mini Membrane Pump, Micro Water Pump, Micro Diaphragm Pump, Micro Membrane Pump, Electric Pump, Electric Water Pump, Electric Diaphragm Pump, Electric Membrane Pump, Brush Pump, Brushless Pump, Food Grade Pump, Water Dispenser Pump, Water System Pump, Coffee Machine Pump, Vending Machine Pump, Ice Maker Pump, Agriculture pump, Electric Sprayer Pump, Self-priming pump, micro self-priming pump, mini self-priming pump, self-priming water pump, self-priming diaphragm pump
Diaphragm Pumps are used extensively in many industries and can handle a very wide variety of liquids. Diaphragm Pumps are in the category of "positive displacement" pumps because their flowrates do not vary much with the discharge "head" (or pressure) the pump is working against (for a given pump speed). Diaphragm Pumps can transfer liquids with low, medium or high viscosities and also liquids with a large solids content. They can also handle many aggressive chemicals such as acids because they can be constructed with a wide variety of body materials and diaphragms
Features
1. Food grade
2. Small size and easy installation
3. Low noise with smooth running
4. Self-priming with dry suction 1-2.5 meters
5. Dry run without damage
6. Long life permanent magnet DC brush motor
7. Varible hosing port
8. explosion proof design for flammable refrigerants
9. handling cold water and hot water 0-100℃
Applications
1. Water dispenser
2. Coffee machine
3. Vending machine
4. Ice maker
5. Tea table water dispensing
6. Integrated stove
7. Medical equipment
8. Chemical instrument
9. Electric sprayer
10. Wine taker
11. Water purifier/filtration
Specifications
Model |
Hosing Port |
Rated Volts (VDC) |
Rated Amps (A) |
Open Flow (L/min) |
Noise @ 30CM (dB) |
Dry Suction (m) |
Head (m) |
Output Pressure (MPA) |
Weight (KG) |
Duty Cycle |
KDP-14 |
Φ1/4"(6.5mm)OD quick push |
12 |
0.2 |
0.8±0.2 |
43 |
1.0/1.8 |
2 |
0.08 (10PSI) |
0.25 |
Intermittent |
12/24 |
0.3/0.15 |
1.0± 0.2 |
45 |
1.2/2.0 |
5 |
0.15 (20PSI) |
0.25 |
Intermittent |
||
12/24 |
0.4/0.2 |
1.2± 0.2 |
48 |
1.5/2.5 |
7 |
0.2 (30PSI) |
0.25 |
Intermittent |
||
12/24 |
0.5/0.3 |
1.4± 0.2 |
50 |
1.5 |
10 |
0.3 (45PSI) |
0.25 |
Intermittent |
||
12/24 |
0.6/0.35 |
1.6± 0.2 |
52 |
1.5 |
10 |
0.3 (45PSI) |
0.25 |
Intermittent |
||
12/24 |
0.7/0.4 |
1.8± 0.2 |
54 |
1.5 |
10 |
0.3 (45PSI) |
0.25 |
Intermittent |
||
12/24 | 0.8/0.5 | 2.0± 0.2 | 56 | 1.5 | 10 |
0.3 (45PSI) |
0.25 | Intermittent | ||
12/24 | 1.0/0.6 | 2.3± 0.3 | 58 | 1.5 | 10 |
0.3 (45PSI) |
0.25 | Intermittent |
Tested with clean water at 25℃。
Wetted Parts Material Construction
Pump housing - PP/PP+20%GF
Pump covers - PP/PP+20%GF
Diaphragms - Silicone/EPDM/VITON/Santoprene TPV
Check valve sealings - Silicone/EPDM/VITON
Performance Curve
