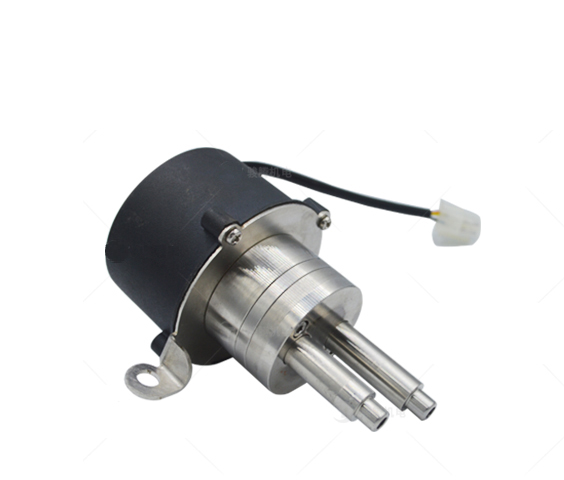

FLOWDRIFT^TM DC 24V Liquid Pump Water Pump Electric Brushless Motor Drive Metering Pump Magnetic Drive Gear Pump Low Flow 1.2LPM Stainless Steel Gear Pump MG204XP01A02 for fluid -10~120C Viscosity 3000CPS high and low temperature resistance accurate measurement no leakage SUS304/316L corrosion resistance beverage filling and dispensing

MG series magnetic gear pump (referred to as magnetic pump), usually consists of electric motor, magnetic coupling and gear pump. Its main feature is the use of magnetic coupling to transmit power, completely no leakage, when the motor drives the external magnetic steel of the magnetic coupling to rotate, the magnetic field line through the gap and isolation sleeve, acting on the inner magnetic steel, so that the pump rotor and the motor synchronous rotation, no mechanical contact to transmit torque. At the power input of the pump shaft, there is no leakage due to the liquid being enclosed in a stationary isolation sleeve without a moving seal. Non-leakage magnetic pump is an ideal green chemical equipment, which will bring high economic and social benefits to chemical, petrochemical, pharmaceutical and printing and dyeing production enterprises to increase production and save expenditure, eliminate pollution, protect the environment, safe production and labor protection.

Performance of magnetic gear pumps:

Advantages: small size, light weight, simple structure, convenient manufacturing, low price, reliable work, good self-priming performance, insensitive to oil pollution, convenient maintenance, etc.

Disadvantages: large flow and pressure pulsation, large noise, immutable displacement, etc.

Features of gear pumps:

1. The pump shaft has changed from a dynamic seal to a closed static seal, which completely avoids medium leakage;

2. When overloaded, the internal and external magnetic rotors are relatively slippery, which has a protective effect on the motor and pump;

3. No need for independent lubrication and cooling water, reducing energy consumption;

4. The transmission by the coupling becomes synchronous drag, and there is no contact and friction. Low power consumption, high efficiency, and damping effect, reducing the influence of motor vibration on the pump and the influence on the motor when the pump cavitation vibration.
